FR9888C - 340KHz Synchronous Step-Down DC/DC Converter

Datasheet Summary

Description

NAME SOP8 DESCRIPTION BST 1 High Side Gate Drive Boost VIN 2 Power Supply Input Pin LX 3 Power Switching Output GND 4,9 Ground TYPICAL APPLICATION FB 5 Voltage Feedback Input Set-Top-Box (STB) COMP 6 Compensation Pin Television SHDN 7 Enable Input Distributed Power System SS 8

Features

High Efficiency up to 96% Low Rds(on) Integrated Power MOSFET Wide Input Voltage Range: 4.5V to 23V Adjustable Output Voltage Range: 0.925V to 20V Fixed 340KHz Switching Frequency Adjustable Soft-Start Cycle-by-Cycle Current Limit Input Under Voltage Lockout Over-Temperature Protection with Auto Recovery.

Fiti

📥 Download Datasheet

Datasheet Details

Part number	FR9888C
Manufacturer	Fiti
File Size	116.74 KB
Description	340KHz Synchronous Step-Down DC/DC Converter
Datasheet	FR9888C Datasheet
Additional preview pages of the FR9888C datasheet.

📁 Similar Datasheet

FR9886 - 340KHz Synchronous Step-Down DC/DC Converter (fitipower integrated technology)
FR900R12IP4D - PrimePACK3+ module (Infineon)
FR9014 - P-Channel MOSFET (VBsemi)
FR9024 - IRFR9024 (International Rectifier)
FR9024N - IRFR9024N (International Rectifier)
FR9220 - Power MOSFET (VBsemi)
FR9310 - P-Channel Power MOSFET (VBsemi)

Other Datasheets by Fiti

FR9888 - 340KHz Synchronous Step-Down DC/DC Converter
FR9882 - 340KHz Synchronous Step-Down DC/DC Converter
FR9884 - 340KHz Synchronous Step-Down DC/DC Converter
FR9885 - Synchronous Step-Down DC/DC Converter
FR9886C - 340KHz Synchronous Step-Down DC/DC Converter
FR9886D - 340KHz Synchronous Step-Down DC/DC Converter
FR9887 - 340KHz Synchronous Step-Down DC/DC Converter
FR9889 - 340KHz Synchronous Step-Down DC/DC Converter

Full PDF Text Transcription

Click to expand full text

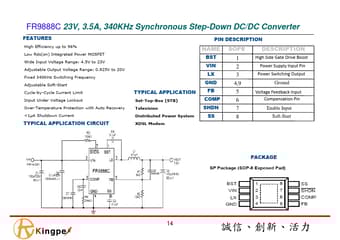

FR9888C 23V, 3.5A, 340KHz Synchronous Step-Down DC/DC Converter FEATURES High Efficiency up to 96% Low Rds(on) Integrated Power MOSFET Wide Input Voltage Range: 4.5V to 23V Adjustable Output Voltage Range: 0.

Published: Jan 21, 2015 |
