FT5306DE4

True Multi-Touch Capacitive Touch Panel Controller

FT5306DE4 Features

* Mutual Capacitive Sensing Techniques

* True Multi-touch with up to 10 Points of Absolution X and Y Coordinates

* Immune to RF Interferences

* Auto-calibration: Insensitive to Capacitance and Environ- mental Variations

* Supports up to 28 Transmit Lines and 16 Receive Lines

FT5306DE4 General Description

1 2.1 MCU 2 2.2 OPERATION MODES 2 2.3 HOST INTERFACE 3 2.4 SERIAL INTERFACE 3 2.4.1 I2C 3 2.4.2 SPI 4 3 ELECTRICAL SPECIFICATIONS 8 3.1 ABSOLUTE MAXIMUM RATINGS 8 3.2 DC CHARACTERISTICS 9 3.3 AC CHARACTERISTICS 9 3.4 I/OPORTSCIRCUITS 10 3.5 POWER ON/RESET/WAKE SEQUENCE 11 4 PIN CONFIGURATIONS.

FT5306DE4 Datasheet (4.37 MB)

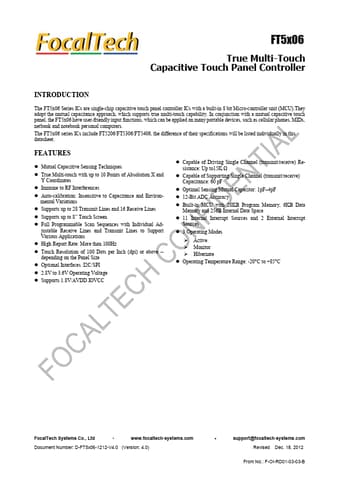

Preview of FT5306DE4 PDF

Datasheet Details

Part number:

FT5306DE4

Manufacturer:

FocalTech Systems

File Size:

4.37 MB

Description:

True multi-touch capacitive touch panel controller.
FT5x06 True Multi-Touch Capacitive Touch Panel Controller INTRODUCTION The FT5x06 Series ICs are single-chip capacitive touch panel controller ICs w.
