FT5336GQQ

True Multi-Touch Capacitive Touch Panel Controller

FT5336GQQ Features

* Mutual Capacitive Sensing Techniques

* Full Screen Common Mode Scan Techniques

* Supports up to 13 TX Lines + 24 RX Lines

* Supports up to 6.1" Touch Screen

* High Report Rate: Up to 120Hz

* Fully Programmable Scan Sequences to Support Various TX/RX Configurations

* Pro

FT5336GQQ General Description

3 2.1 ARCHITECTURAL OVERVIEW 3 2.2 MCU 4 2.3 OPERATION MODES 4 2.4 HOST INTERFACE 4 2.5 SERIAL INTERFACE 5 2.6 PROXIMITY MODES 6 3 ELECTRICAL SPECIFICATIONS 7 3.1 ABSOLUTE MAXIMUM RATINGS 7 3.2 DC CHARACTERISTICS 7 3.3 AC CHARACTERISTICS 7 3.4 I/O PORTS CIRCUITS 8 3.5 POWER ON/RESET SEQUENCE .

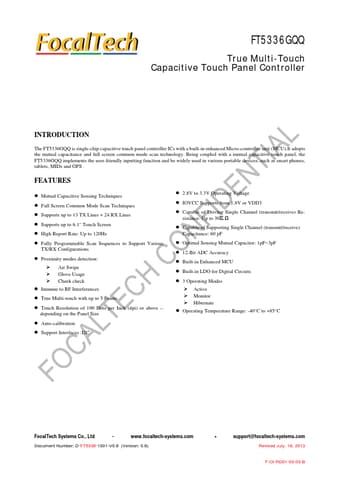

FT5336GQQ Datasheet (426.85 KB)

Preview of FT5336GQQ PDF

Datasheet Details

Part number:

FT5336GQQ

Manufacturer:

FocalTech Systems

File Size:

426.85 KB

Description:

True multi-touch capacitive touch panel controller.
FT5336GQQ True Multi-Touch Capacitive Touch Panel Controller INTRODUCTION The FT5336GQQ is single-chip capacitive touch panel controller ICs with a .
