FT6306 Self-Capacitive Touch Panel Controller

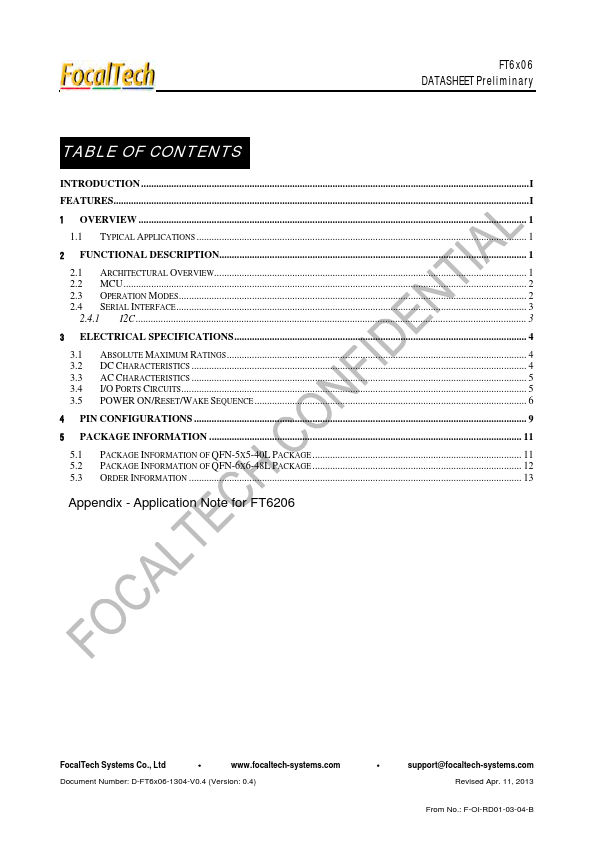

1 2.1 ARCHITECTURAL OVERVIEW 1 2.2 MCU 2 2.3 OPERATION MODES 2 2.4 SERIAL INTERFACE 3 2.4.1 I2C 3 3 ELECTRICAL SPECIFICATIONS 4 3.1 ABSOLUTE MAXIMUM RATINGS 4 3.2 DC CHARACTERISTICS 4 3.3 AC CHARACTERISTICS 5 3.4 I/O PORTS CIRCUITS 5 3.5 POWER ON/RESET/WAKE SEQUENCE 6 4 PIN CONFIGURATIONS 9 5 P.

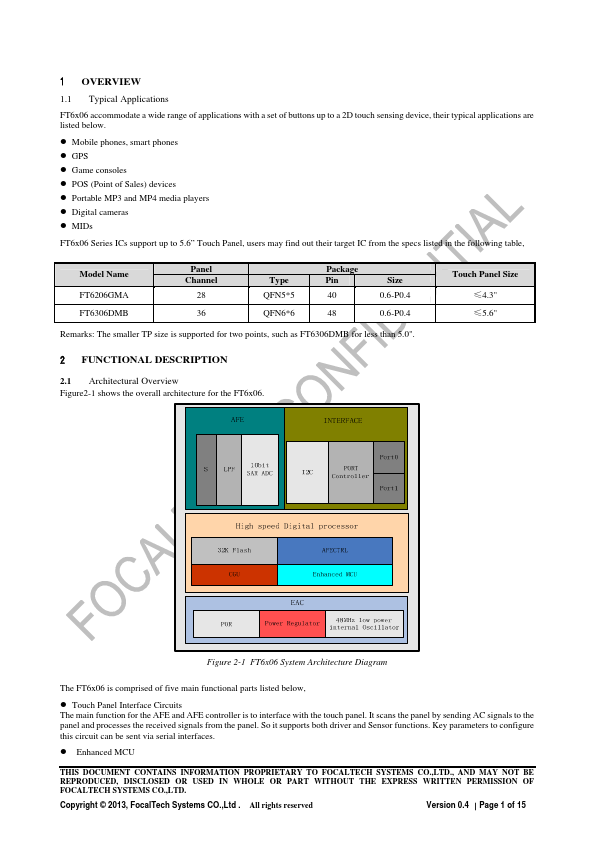

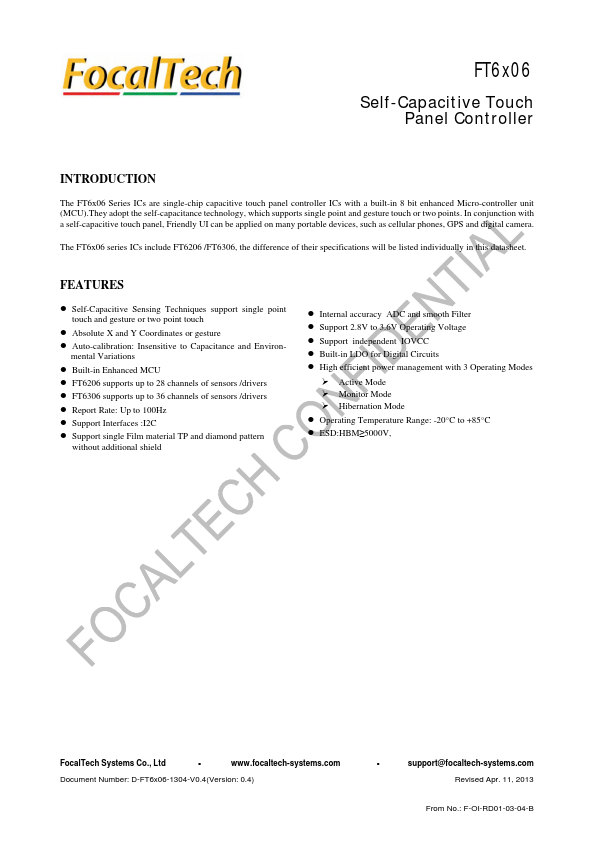

FT6x06 Self-Capacitive Touch Panel Controller INTRODUCTION The FT6x06 Series ICs are single-chip capacitive touch panel controller ICs with a built-in 8 bit enhanced Micro-controller unit (MCU).They adopt the self-capacitance technology, which supports single point and gesture touch or two points. In conjunction with a self-capacitive touch panel, Friendly UI can be applied on many portable devices, such as cellular phones, GPS and digital camera. The FT6x06 series ICs include FT6206 /FT6306, t.

FT6306 Features

* Self-Capacitive Sensing Techniques support single point touch and gesture or two point touch

* Absolute X and Y Coordinates or gesture

* Auto-calibration: Insensitive to Capacitance and Environ- mental Variations

* Built-in Enhanced MCU

* FT6206 supports up to 28 channels of se

FT6306 Datasheet (707.43 KB)
