* Ideal for printed circuit board
* Low forward voltage
* Low leakage current
* Polarity: marked on body
* Mounting position: Any
* Weight: 1.37 grams POS. LEAD .220(5.6) .180(4.6) 1.2 (30.5) MIN. 1.0 (25.4) MIN. .032(0.8) .030(0.7) .220(5.6) .180(4.6) Dimensions in inche
2W01
Formosa MS
29.88 KB
Single phase 2.0 amp bridge rectifiers.

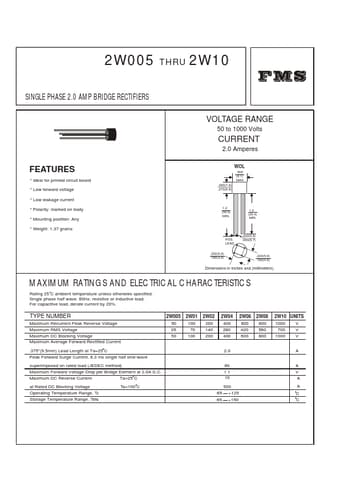

2W005 SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS THRU 2W10 VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes WOL .358 (9.1) MAX. .290(7.4) .270(6.9) .
