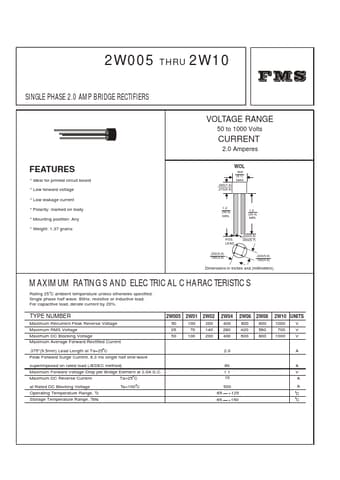

2W04 Datasheet - Formosa MS

2W04 SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS

2W04 Features

* Ideal for printed circuit board

* Low forward voltage

* Low leakage current

* Polarity: marked on body

* Mounting position: Any

* Weight: 1.37 grams POS. LEAD .220(5.6) .180(4.6) 1.2 (30.5) MIN. 1.0 (25.4) MIN. .032(0.8) .030(0.7) .220(5.6) .180(4.6) Dimensions in inche

Datasheet Details

2W04

Formosa MS

29.88 KB

Single phase 2.0 amp bridge rectifiers.
