2W06, SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS

2W005 SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS THRU 2W10 VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes WOL .358 (9.1) MAX..290(7.4) .270(6.9) .

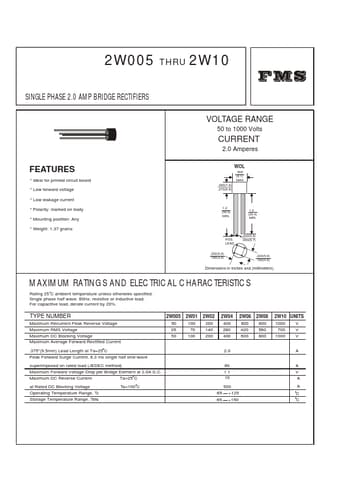

datasheet Preview Page 1 from Datasheet4u.com

2W06_FormosaMS.pdf

2W06 Datasheet Preview — Preview of 2W06 PDF

Datasheet Details

Part number:

2W06

Manufacturer:

Formosa MS

File Size:

29.88 KB

Description:

SINGLE PHASE 2.0 AMP BRIDGE RECTIFIERS

Features

* Ideal for printed circuit board
* Low forward voltage
* Low leakage current
* Polarity: marked on body
* Mounting position: Any
* Weight: 1.37 grams POS. LEAD .220(5.6) .180(4.6) 1.2 (30.5) MIN. 1.0 (25.4) MIN. .032(0.8) .030(0.7) .220(5.6) .180(4.6) Dimensions in inche
