DB107S Datasheet - Formosa MS

DB107S, Glass Passivated Bridge Rectifiers

Surface Mount Bridge Rectifier DB101S THRU DB107S Glass passivated type Formosa MS DFS .310(7.9) .290(7.4) .255(6.5) .245(6.2) ~ ~ .

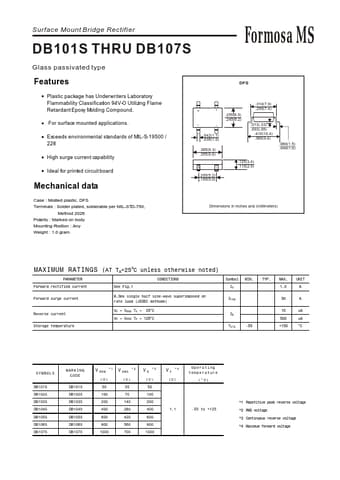

datasheet Preview Page 1 from Datasheet4u.com

DB107S_FormosaMS.pdf

DB107S Datasheet Preview — Preview of DB107S PDF

Datasheet Details

Part number:

DB107S

Manufacturer:

Formosa MS

File Size:

68.46 KB

Description:

Glass Passivated Bridge Rectifiers

Applications

* Exceeds environmental standards of MIL-S-19500 / 228 High surge current capability Ideal for printed circuit board + .042(1.1) .038(1.0) .365(9.3) .355(9.0) .013(.33) .003(.08) .410(10.4) .360(9.4) .060(1.5) .040(1.0) .135(3.4) .115(2.9) .205(5.2) .195(5.0) Mechanical data Case : Molded plasti
