HER1604 - 16.0 AMP HIGH EFFICIENCY RECTIFIERS

Datasheet Summary

Features

  • Low forward voltage drop.
  • High current capability.
  • High reliability.
  • High surge current capability.
  • High speed switching .412 (10.5) MAX. .108 (2.75) 16.0 Ampere 3.8 f +.2 HOLE THRU TO-220 .180 (4.6) .050 (1.27) .248 (6.3).

📥 Download Datasheet

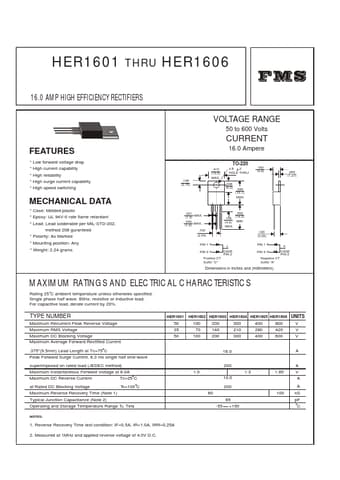

Datasheet preview – HER1604

Datasheet Details

Part number HER1604
Manufacturer Formosa MS
File Size 38.32 KB
Description 16.0 AMP HIGH EFFICIENCY RECTIFIERS
Datasheet download datasheet HER1604 Datasheet
Additional preview pages of the HER1604 datasheet.

📁 Similar Datasheet

  • HER1604 - TECHNICAL SPECIFICATIONS OF HIGH EFFICIENCY RECTIFIER (Dc Components)
  • HER1604 - 16A HIGH EFFICIENCY RECTIFIER (ETC)
  • HER1604 - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER (MIC)
  • HER1604 - 16A Glass Passivated High Efficiency Rectifiers (UPM)
  • HER1604 - 16.0AMPS. GLASS PASSIVATED HIGH EFFICIENT RECTIFIERS (YFD)
  • HER1604C - High Efficiency Rectifiers (Eris)
  • HER1604C - HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 400 Volts CURRENT 16.0 Amperes) (Rectron Semiconductor)
  • HER1604C - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER (MIC)
  • HER1604C - 16.0A HIGH EFFICIENCY RECTIFIERS (WILLAS)
  • HER1604CS - HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 400 Volts CURRENT 16.0 Amperes) (Rectron Semiconductor)
Other Datasheets by Formosa MS
  • HER1601 - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1602 - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1603 - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1605 - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1606 - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER101 - 1.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER102 - 1.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER103 - 1.0 AMP HIGH EFFICIENCY RECTIFIERS

Full PDF Text Transcription

Click to expand full text
HER1601 THRU HER1606 16.0 AMP HIGH EFFICIENCY RECTIFIERS VOLTAGE RANGE 50 to 600 Volts CURRENT FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * High speed switching .412 (10.5) MAX. .108 (2.75) 16.0 Ampere 3.8 f +.2 HOLE THRU TO-220 .180 (4.6) .050 (1.27) .248 (6.3) MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Lead solderable per MIL-STD-202, method 208 guranteed * Polarity: As Marked * Mounting position: Any * Weight: 2.24 grams .051 MAX. (1.3) .040 MAX. (1.0) .100 (2.54) PIN 1 PIN 3 Positive CT Suffix "C" .595 (15.1) MAX. .550 (14.0) .158 (4.0) MIN. MAX. .120 (3.
