HER1604CT - 16.0 AMP HIGH EFFICIENCY RECTIFIERS

This page provides the datasheet information for the HER1604CT, a member of the HER1601CT 16.0 AMP HIGH EFFICIENCY RECTIFIERS family.

Datasheet Summary

Features

  • Low forward voltage drop.
  • High current capability.
  • High reliability.
  • High surge current capability.
  • High speed switching.

📥 Download Datasheet

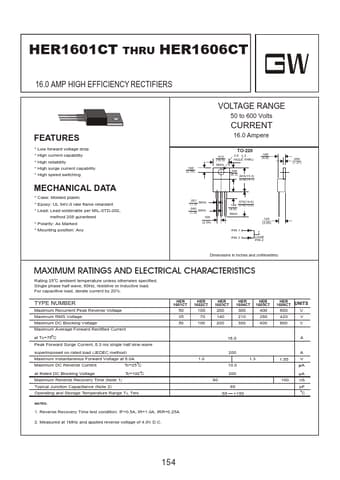

Datasheet preview – HER1604CT

Datasheet Details

Part number HER1604CT
Manufacturer GW
File Size 62.83 KB
Description 16.0 AMP HIGH EFFICIENCY RECTIFIERS
Datasheet download datasheet HER1604CT Datasheet
Additional preview pages of the HER1604CT datasheet.

📁 Similar Datasheet

  • HER1604CT - GLASS PASSIVATED HIGH EFFICENCY RECTIFIERS (SEMTECH)
  • HER1604CT - 16.0AMPS. GLASS PASSIVATED HIGH EFFICIENT RECTIFIERS (YueFeiDa)
  • HER1604CT - GLASS PASSIVATED HIGH EFFICENCY RECTIFIER (SMG)
  • HER1604CT - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIERS (HY)
  • HER1604C - High Efficiency Rectifiers (Eris)
  • HER1604C - HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 400 Volts CURRENT 16.0 Amperes) (Rectron Semiconductor)
  • HER1604C - HIGH EFFICIENCY GLASS PASSIVATED RECTIFIER (MIC)
  • HER1604C - 16.0A HIGH EFFICIENCY RECTIFIERS (WILLAS)
  • HER1604CS - HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 400 Volts CURRENT 16.0 Amperes) (Rectron Semiconductor)
  • HER1604 - 16.0 AMP HIGH EFFICIENCY RECTIFIERS (Formosa MS)
Other Datasheets by GW
  • HER1601CT - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1602CT - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1603CT - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1605CT - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER1606CT - 16.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER101S - 1.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER102S - 1.0 AMP HIGH EFFICIENCY RECTIFIERS
  • HER103S - 1.0 AMP HIGH EFFICIENCY RECTIFIERS

Full PDF Text Transcription

Click to expand full text
HER1601CT THRU HER1606CT 16.0 AMP HIGH EFFICIENCY RECTIFIERS FEATURES * Low forward voltage drop * High current capability * High reliability * High surge current capability * High speed switching MECHANICAL DATA * Case: Molded plastic * Epoxy: UL 94V-0 rate flame retardant * Lead: Lead solderable per MIL-STD-202, method 208 guranteed * Polarity: As Marked * Mounting position: Any VOLTAGE RANGE 50 to 600 Volts CURRENT 16.0 Ampere .108 (2.75) .412 (10.5) MAX. TO-220 3.8 f +.2 HOLE THRU .248 (6.3) .603(15.3) .578(14.7) .180 (4.6) .050 (1.27) .051 (1.3) MAX. .040 (1.0) MAX. .100 (2.54) .576(14.6) .158 .514(13.0) (4.0) MAX. .120 (3.
