SFM36, SFM31 Chip Silicon Rectifier

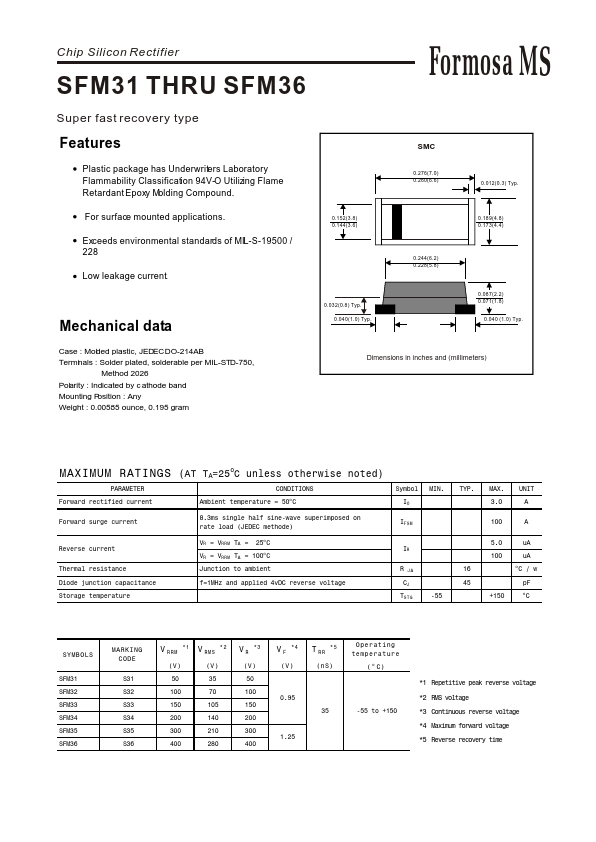

📥 Download Datasheet  Datasheet Preview Page 1

Description

Chip Silicon Rectifier SFM31 THRU SFM36 Formosa MS Super fast recovery type .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SFM36, SFM31. Please refer to the document for exact specifications by model.

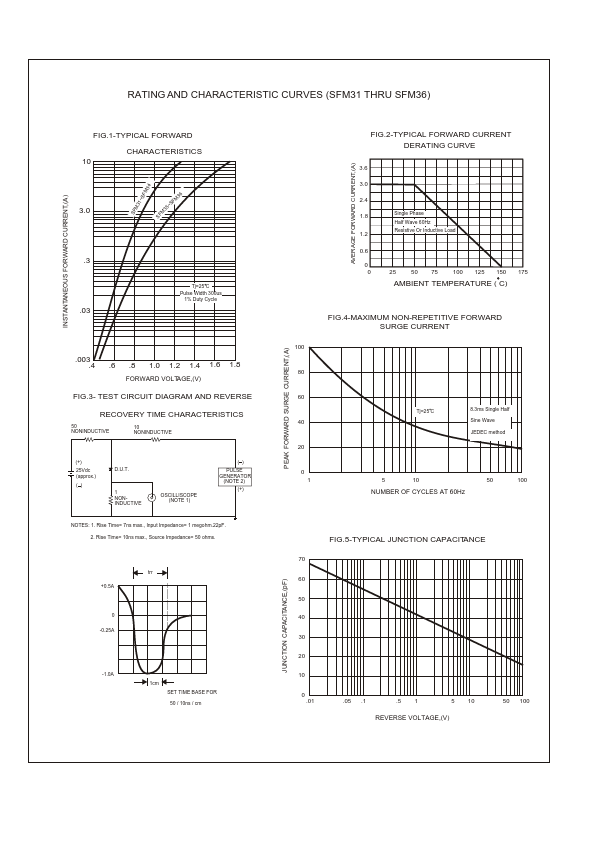

datasheet Preview Page 2

Datasheet Specifications

Part number
SFM36, SFM31
Manufacturer
Formosa MS
File Size
65.16 KB
Datasheet
SFM31-FormosaMS.pdf
Description
Chip Silicon Rectifier
Note
This datasheet PDF includes multiple part numbers: SFM36, SFM31.
Please refer to the document for exact specifications by model.

Applications

* Exceeds environmental standards of MIL-S-19500 / 228 Low leakage current. Mechanical data Case : Molded plastic, JEDEC DO-214AB Terminals : Solder plated, solderable per MIL-STD-750, Method 2026 Polarity : Indicated by c athode band Mounting Position : Any Weight : 0.00585 ounce, 0.195 gram 0.152(
