D30-12, D30-11 Datasheet - FranMar

D30-12 30 Watts DIP Type Wide Input Range DC-DC Converter

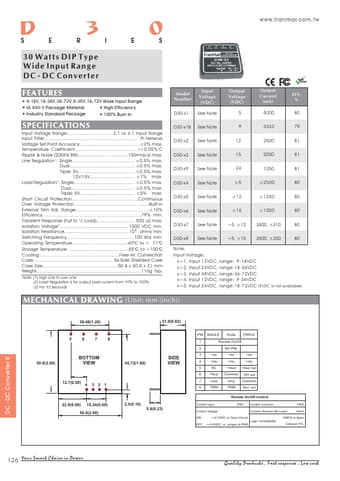

D30 30 Watts DIP Type Wide Input Range DC - DC Converter 9-18V,18-36V,36-72V,9-36V,18-72V Wide Input Range UL 94V-0 Package Material High Efficiency Industry Standard Package 100% Burn In Model Number Input Voltage (VDC) D30-x1 See Note Output Voltage (VDC) 5 Output Current (mA) 5000 EFF. % 80 Input Voltage Range2:1 or 4:1 Input Range Input Filter Pi Network Voltage Set Point Accuracy±2% max. Temperature Coefficient+/-0.05%oC Ripple & Noise (20MHz BW)15.

D30-11-FranMar.pdf

D30-12 Datasheet Preview — This datasheet PDF includes multiple part numbers: D30-12, D30-11. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

D30-12, D30-11

Manufacturer:

FranMar

File Size:

88.82 KB

Description:

30 watts dip type wide input range dc-dc converter.

Note:

This datasheet PDF includes multiple part numbers: D30-12, D30-11.
Please refer to the document for exact specifications by model.
