D3000D20, D3000D, 3000A Standard Recovery Diode

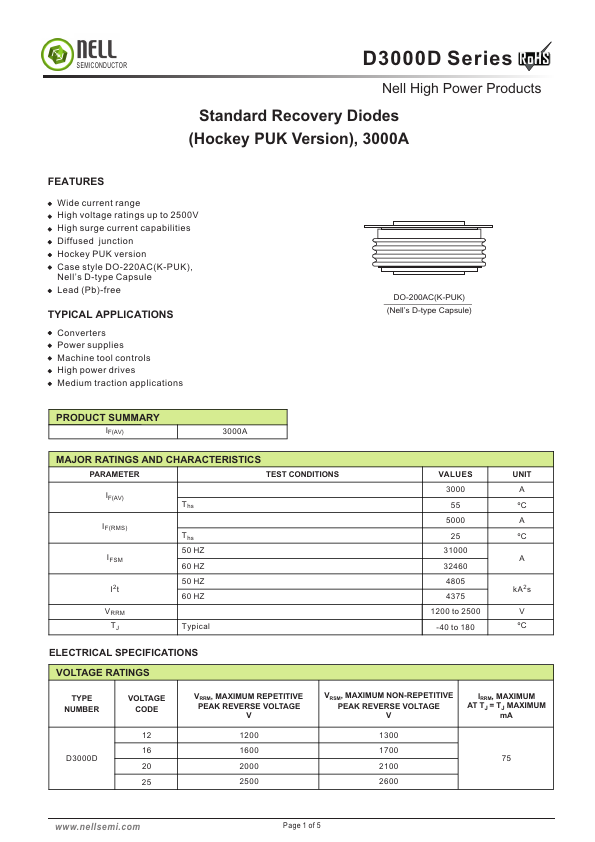

SEMICONDUCTOR D3000D Series RRooHHSS Nell High Power Products Standard Recovery Diodes (Hockey PUK Version), 3000A .

datasheet Preview Page 1 from Datasheet4u.com

D3000D-nELL.pdf

D3000D20 Datasheet Preview — This datasheet PDF includes multiple part numbers: D3000D20, D3000D. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

D3000D20, D3000D

Manufacturer:

nELL

File Size:

207.70 KB

Description:

3000A Standard Recovery Diode

Note:

This datasheet PDF includes multiple part numbers: D3000D20, D3000D.
Please refer to the document for exact specifications by model.

Applications

* Converters Power supplies Machine tool controls High power drives Medium traction applications DO-200AC(K-PUK) (Nell’s D-type Capsule) PRODUCT SUMMARY IF(AV) 3000A MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) Ths IF(RMS) IFSM I2t VRRM TJ Ths 50 HZ 60 HZ 50 HZ 60 HZ Typ
