D3000D16, D3000D 3000A Standard Recovery Diode

nELL

Description

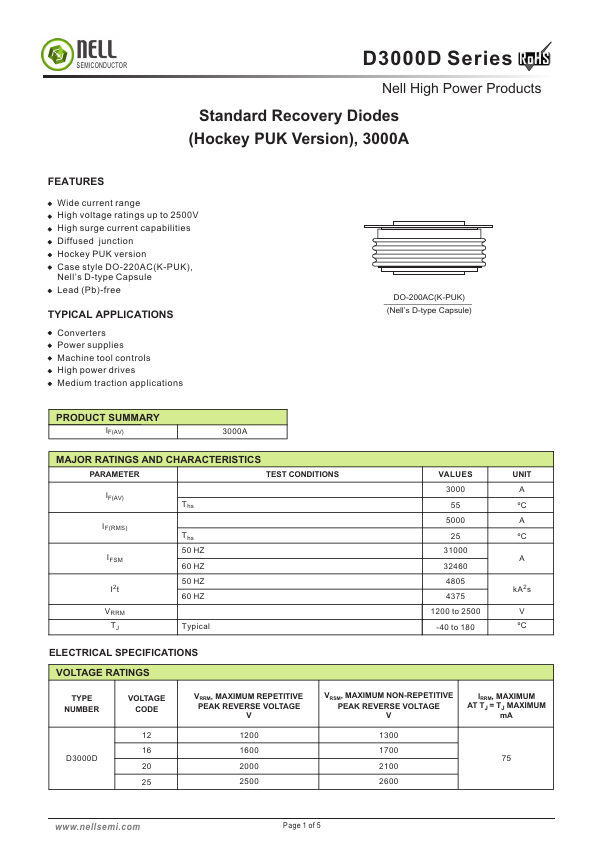

SEMICONDUCTOR D3000D Series RRooHHSS Nell High Power Products Standard Recovery Diodes (Hockey PUK Version), 3000A .

📥 Download Datasheet

D3000D16 Datasheet Preview — This datasheet PDF includes multiple part numbers: D3000D16, D3000D. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: D3000D16, D3000D
Manufacturer: nELL
File Size: 207.70 KB
Datasheet: D3000D-nELL.pdf
Description: 3000A Standard Recovery Diode
Note: This datasheet PDF includes multiple part numbers: D3000D16, D3000D.
Please refer to the document for exact specifications by model.

Applications

* Converters Power supplies Machine tool controls High power drives Medium traction applications DO-200AC(K-PUK) (Nell’s D-type Capsule) PRODUCT SUMMARY IF(AV) 3000A MAJOR RATINGS AND CHARACTERISTICS PARAMETER TEST CONDITIONS IF(AV) Ths IF(RMS) IFSM I2t VRRM TJ Ths 50 HZ 60 HZ 50 HZ 60 HZ Typ
