07XSC200 Datasheet - Freescale Semiconductor

Dual High Side Switch

07XSC200 Features

* Dual 7.0 m max high side switch (at 25 °C)

* Operating voltage range of 6.0 to 20 V with sleep current < 5.0 µA, extended mode from 4.0 to 28 V

* 8.0 MHz 16-bit 3.3 V and 5.0 V SPI control and status reporting with daisy chain capability

* PWM module using external

07XSC200 General Description

of each pin can be found in the Functional Pin Description section beginning on page 22. Table 1. 07XSC200 Pin Definitions Pin Number 1 2 3 4 5 6 7, 25 Pin Name RSTB CSB SCLK SI VDD SO GND Pin Function Input Input Input Input Input Output Ground Formal Name Reset (Active Low) Chip Select (Active Low.

07XSC200 Datasheet (1.40 MB)

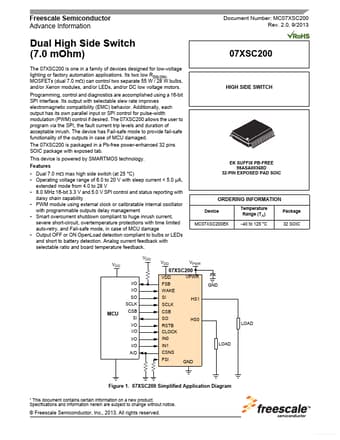

07XSC200 Datasheet Preview — Preview of 07XSC200 PDF

Datasheet Details

Part number:

07XSC200

Manufacturer:

Freescale Semiconductor

File Size:

1.40 MB

Description:

Dual high side switch.
Freescale Semiconductor Advance Information Document Number: MC07XSC200 Rev. 2.0, 9/2013 Dual High Side Switch (7.0 mOhm) The 07XSC200 is one in a .
