07XS3200 Datasheet - NXP

07XS3200 Dual high-side switch

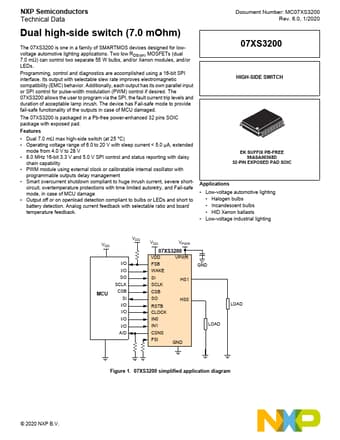

NXP Semiconductors Technical Data Document Number: MC07XS3200 Rev. 6.0, 1/2020 Dual high-side switch (7.0 mOhm) The 07XS3200 is one in a family of SMARTMOS devices designed for lowvoltage automotive lighting applications. Two low RDS(on) MOSFETs (dual 7.0 mΩ) can control two separate 55 W bulbs, and/or Xenon modules, and/or LEDs. Programming, control and diagnostics are accomplished using a 16-bit SPI interface. Its output with selectable slew rate improves electromagnetic compatibility (EMC) .

07XS3200 Features

* Dual 7.0 mΩ max high-side switch (at 25 °C)

* Operating voltage range of 6.0 to 20 V with sleep current < 5.0 µA, extended mode from 4.0 V to 28 V

* 8.0 MHz 16-bit 3.3 V and 5.0 V SPI control and status reporting with daisy chain capability

* PWM module using extern
