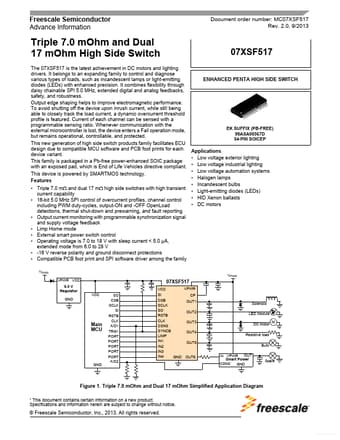

Freescale Semiconductor Advance Information Document order number: MC07XSF517 Rev.
2.0, 9/2013 Triple 7.0 mOhm and Dual 17 mOhm High Side Switch The 07XSF517 is the latest achievement in DC motors and lighting drivers.
It belongs to an expanding family to control and diagnose various types of loads, such as incandescent lamps or light-emitting diodes (LEDs) with enhanced precision.
It combines flexibility through daisy chainable SPI 5.0 MHz, extended digital and analog feedbacks, safety, and
07XSF517 Features
* Triple 7.0 m and dual 17 m high side switches with high transient current capability
* 16-bit 5.0 MHz SPI control of overcurrent profiles, channel control including PWM duty-cycles, output-ON and -OFF OpenLoad detections, thermal shut-down and prewarning, and fault reporting
