DDR Switch-Mode Power Supply

34712 Features

* 45 mΩ Integrated N-Channel Power MOSFETs

* Input Voltage Operating Range from 3.0 V to 6.0 V

* ±1 % Accurate Output Voltage, Ranging from 0.7 V to 1.35 V

* ±1 % Accurate Buffered Reference Output Voltage

* Programmable Switching Frequency Range from 200 kHz

34712 General Description

of each pin can be found in the Functional Pin Description section beginning on page 10. Pin Number 1 2 3 4 5 6 7 8 9 10 11 12,13,14 15,16,17 18,19,20 21 Pin Name GND FREQ NC PG STBY SD Pin Function Ground Passive None Output Input Input Input Output Passive Input Output Ground Power Supply Passive.

34712 Datasheet (361.07 KB)

Preview of 34712 PDF

Datasheet Details

Part number:

34712

Manufacturer:

Freescale Semiconductor

File Size:

361.07 KB

Description:

Ddr switch-mode power supply.

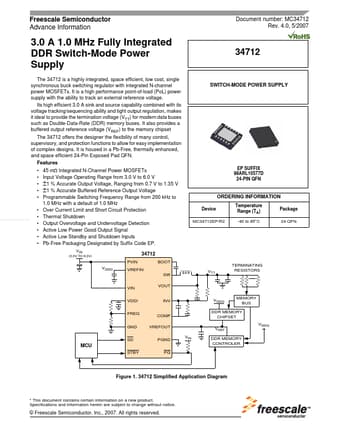

Freescale Semiconductor Advance Information Document number: MC34712 Rev. 4.0, 5/2007 3.0 A 1.0 MHz Fully Integrated DDR Switch-Mode Power Supply Th.
