34716

Dual Switch-Mode DDR Power Supply

34716 Features

* 50 mΩ Integrated N-Channel Power MOSFETs

* Input Voltage Operating Range from 3.0 V to 6.0 V

* ±1 % Accurate Output Voltages, Ranging from 0.7 V to 3.6 V

* The second output Tracks 1/2 an External Reference Voltage

* ±1 % Accurate Buffered Reference Output V

34716 General Description

of each pin can be found in the Functional Pin Description section beginning on page 11. Pin Number 1 2 3 4 5 6 7 8 9 10 11 12 13 Pin Name BOOT1 PVIN1 SW1 PGND1 VOUT1 INV1 COMP1 VREFIN VREFOUT PG SD COMP2 INV2 Pin Function Passive Supply Input/Output Ground Input Input Input Input Output Output Inpu.

34716 Datasheet (436.78 KB)

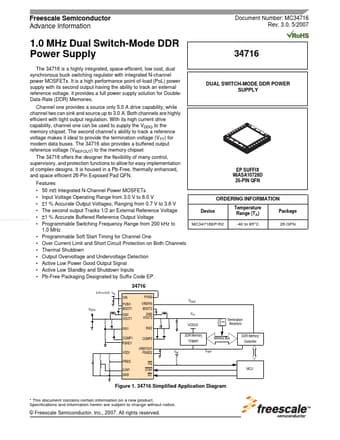

Preview of 34716 PDF

Datasheet Details

Part number:

34716

Manufacturer:

Freescale Semiconductor

File Size:

436.78 KB

Description:

Dual switch-mode ddr power supply.
Freescale Semiconductor Advance Information Document Number: MC34716 Rev. 3.0, 5/2007 1.0 MHz Dual Switch-Mode DDR Power Supply The 34716 is a highl.
