34713

Single Switch-Mode Power Supply

34713 Features

* 50 m integrated N-channel power MOSFETs

* Input voltage operating range from 3.0 to 6.0 V

* 1% accurate output voltage, ranging from 0.7 to 3.6 V

* Voltage tracking capability in different configurations.

* Programmable switching frequency range from 200 k

34713 General Description

of each pin can be found in the Functional Pin Description section beginning on page 10. Pin Number Pin Name Pin Function Formal Name Definition 1 GND Ground Signal Ground Analog signal ground of IC 2 FREQ Passive Frequency Adjustment Buck converter switching frequency adjustment pin 3 I.

34713 Datasheet (1.43 MB)

Preview of 34713 PDF

Datasheet Details

Part number:

34713

Manufacturer:

Freescale Semiconductor

File Size:

1.43 MB

Description:

Single switch-mode power supply.

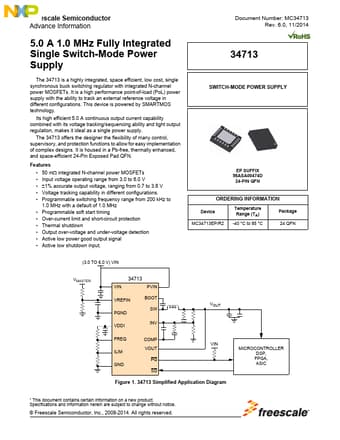

Freescale Semiconductor Advance Information 5.0 A 1.0 MHz Fully Integrated Single Switch-Mode Power Supply The 34713 is a highly integrated, space ef.
