MW5IC970NBR1 - RF LDMOS Wideband 2-Stage Power Amplifiers

Freescale Semiconductor

📥 Download Datasheet

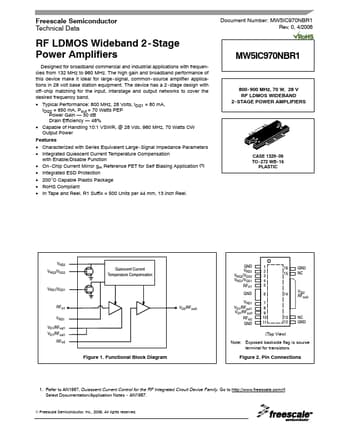

MW5IC970NBR1 Datasheet Preview — Preview of MW5IC970NBR1 PDF

Datasheet Details

Part number: MW5IC970NBR1
Manufacturer: Freescale Semiconductor
File Size: 241.59 KB
Datasheet: MW5IC970NBR1_FreescaleSemiconductor.pdf
Description: RF LDMOS Wideband 2-Stage Power Amplifiers

MW5IC970NBR1 Product details

Description

3.9 pF Chip Capacitor 56 pF Chip Capacitor 39 pF Chip Capacitors 10 µF Chip Capacitors 24 pF Chip Capacitor 15 pF Chip Capacitors 4.7 pF Chip Capacitor 0.4 pF Chip Capacitor 0.015 µF Chip Capacitors 5A Surface Mount Fuse 1A Surface Mount Fuse 681 Ω, Chip Resistors 4.75 kΩ, Chip Resistors 1.21 kΩ, Chip Resistors 267 Ω, Chip Resistor Part Number 600S3R9BT 600S560JW GRM40001C0G390J050BD ECJ4YF1H106Z 600F240JT 600F150JT 600F4R7BT 600F0R4BT GRM400X7R153J050BD 1FT5A 1FT1A ATC ATC Murata Panasonic ATC

Features

Characterized with Series Equivalent Large - Signal Impedance Parameters.
Integrated Quiescent Current Temperature Compensation with Enable/Disable Function.
On - Chip Current Mirror gm Reference FET for Self Biasing Application (1).
Integrated ESD Protection.
200°C Capable Plastic Package.
RoHS Compliant.
In Tape and Reel. R1 Suffix = 500 Units per 44 mm, 13 inch Reel. MW5IC970NBR1 800 - 900 MHz, 70 W, 28 V RF.
