MC3424 N-Channel 20-V (D-S) MOSFET

MC3424 Description

Freescale AO3424/MC3424 N-Channel 20-V (D-S) MOSFET Key .

MC3424 Features

* Low rDS(on) trench technology
* Low thermal impedance

MC3424 Applications

* White LED boost converters
* Automotive Systems
* Industrial DC/DC Conversion Circuits PRODUCT SUMMARY rDS(on) (mΩ) 76 @ VGS = 4.5V 103 @ VGS = 2.5V VDS (V) 20 ID(A) 3.4 3.0 ABSOLUTE MAXIMUM RATINGS (TA = 25°C UNLESS OTHERWISE NOTED) Parameter Symbol Limit VDS Drain-Sou

📥 Download Datasheet

Preview of MC3424 PDF

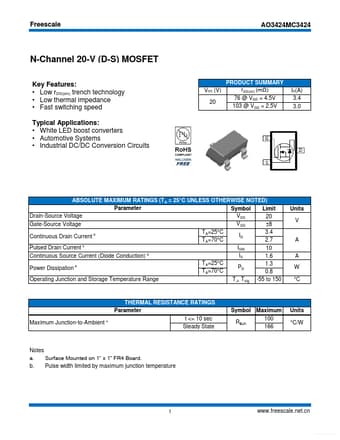

datasheet Preview Page 2 datasheet Preview Page 3
