MC3424DV - N-Channel Logic Level MOSFET

MC3424DV Description

Freescale These miniature surface mount MOSFETs utilize a high cell density trench process to provide low rDS(on) and to ensure minimal power loss and.

MC3424DV Applications

* are DC-DC converters and power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones. Si 34 24 DV/ MC34 24 DV N-Channel Logic Level MOSFET PRODUCT SUMMARY VDS (V) rDS(on) (Ω) 0.027 @ VGS = 10 V 30 0.035 @ VGS = 4.5V ID (A) 6.

📥 Download Datasheet

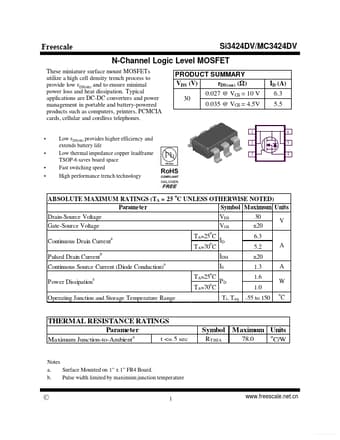

Preview of MC3424DV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC3424DV
Manufacturer
Freescale
File Size
304.54 KB
Datasheet
MC3424DV_Freescale.pdf
Description
N-Channel Logic Level MOSFET
