MC3415A P-Channel MOSFET

MC3415A Description

Freescale Analog Power P-Channel 20-V (D-S) MOSFET These miniature surface mount MOSFETs utilize High Cell Density process.Low rDS(on) assures minima.

MC3415A Applications

* are DC-DC converters, power management in portable and battery-powered products such as computers, printers, PCMCIA cards, cellular and cordless telephones.
* Low rDS(on) Provides Higher Efficiency and Extends Battery Life
* Miniature SOT-23 Surface Mount Package Saves Board Space

📥 Download Datasheet

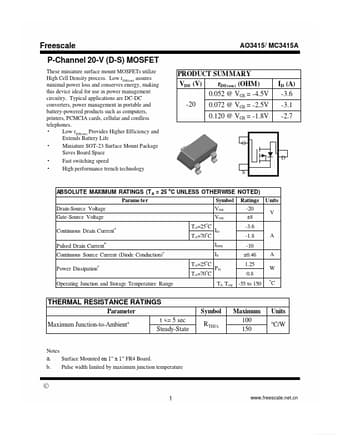

Preview of MC3415A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC3415A
Manufacturer
Freescale
File Size
479.21 KB
Datasheet
MC3415A_Freescale.pdf
Description
P-Channel MOSFET
