MC34152 Datasheet - Motorola

MC34152 HIGH SPEED DUAL MOSFET DRIVERS

The MC34152 is a dual noninverting high speed driver specifically designed to interface low current digital circuitry with power MOSFETs. This device is constructed with Schottky clamped Bipolar Analog technology which offers a high degree of performance and ruggedness in hostile industrial environm.

MC34152 Features

* or so that an unconnected open input will cause the associated Drive Output to be in a known low state. Output Stage Each totem pole Drive Output is capable of sourcing and sinking up to 1.5 A with a typical ‘on’ resistance of 2.4 Ω at 1.0 A. The low ‘on’ resistance allows high output currents to MO

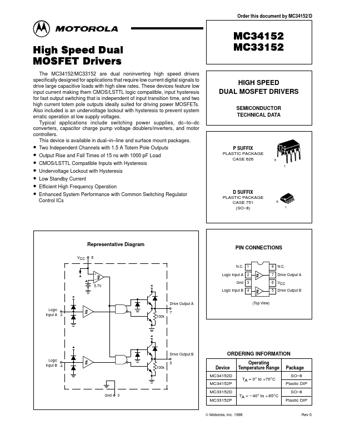

MC34152 Datasheet (250.92 KB)

Preview of MC34152 PDF
MC34152 Datasheet Preview Page 2 MC34152 Datasheet Preview Page 3

Datasheet Details

Part number:

MC34152

Manufacturer:

Motorola

File Size:

250.92 KB

Description:

High speed dual mosfet drivers.
