FFM201-S 2A SMD FAST RECOVERY RECTIFIERS

Frontier Electronics

Description

FFM201-S THRU FFM207-S SPECIFICATION Rev.A 2A SMD FAST RECOVERY RECTIFIERS, 50V-1000V PRODUCT .

📥 Download Datasheet

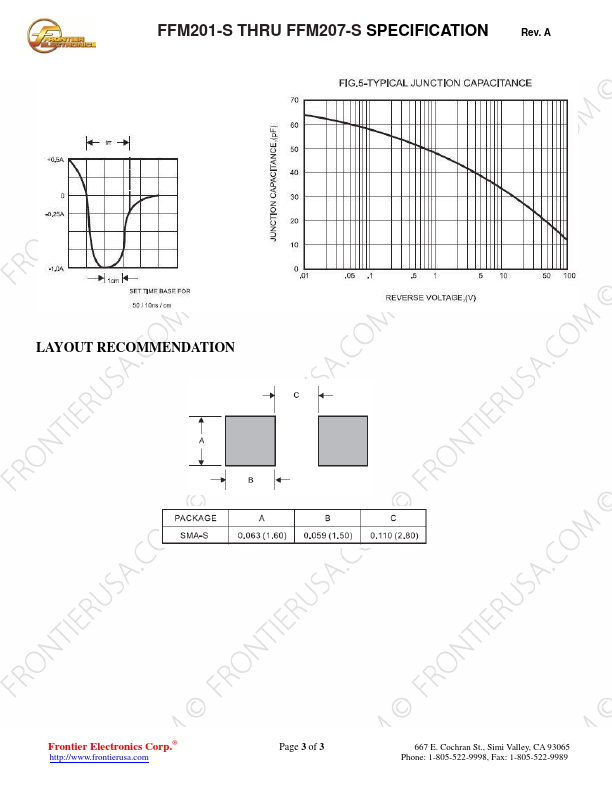

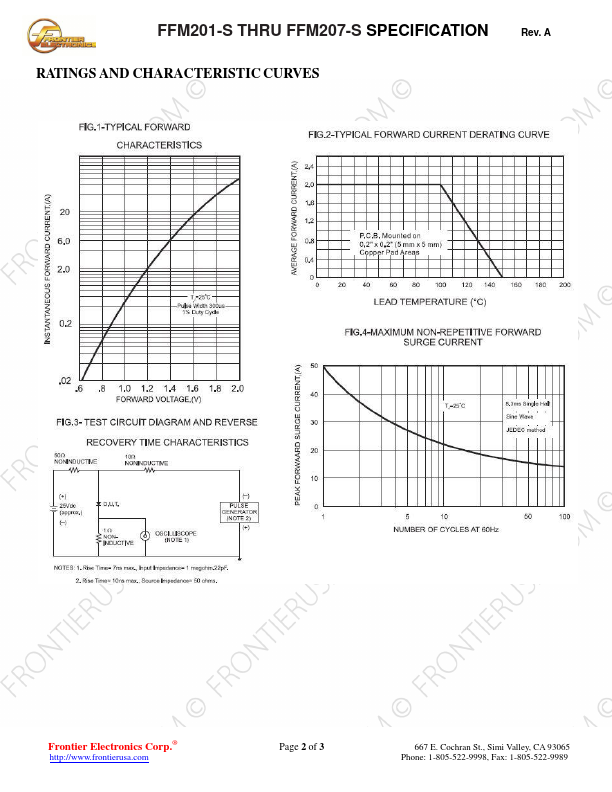

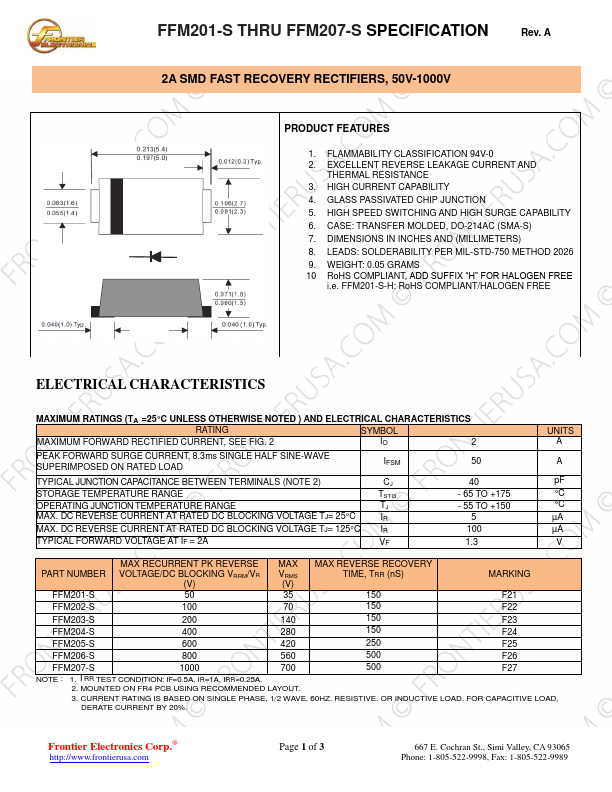

FFM201-S Datasheet Preview — Preview of FFM201-S PDF

Datasheet Specifications

Part number: FFM201-S
Manufacturer: Frontier Electronics
File Size: 468.36 KB
Datasheet: FFM201-S-FrontierElectronics.pdf
Description: 2A SMD FAST RECOVERY RECTIFIERS

Features

* 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXCELLENT REVERSE LEAKAGE CURRENT AND THERMAL RESISTANCE 3. HIGH CURRENT CAPABILITY 4. GLASS PASSIVATED CHIP JUNCTION 5. HIGH SPEED SWITCHING AND HIGH SURGE CAPABILITY 6. CASE: TRANSFER MOLDED, DO-214AC (SMA-S) 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEAD
