FFM204-S, FFM201-S 2A SMD FAST RECOVERY RECTIFIERS

Frontier Electronics

Description

FFM201-S THRU FFM207-S SPECIFICATION Rev.A 2A SMD FAST RECOVERY RECTIFIERS, 50V-1000V PRODUCT .

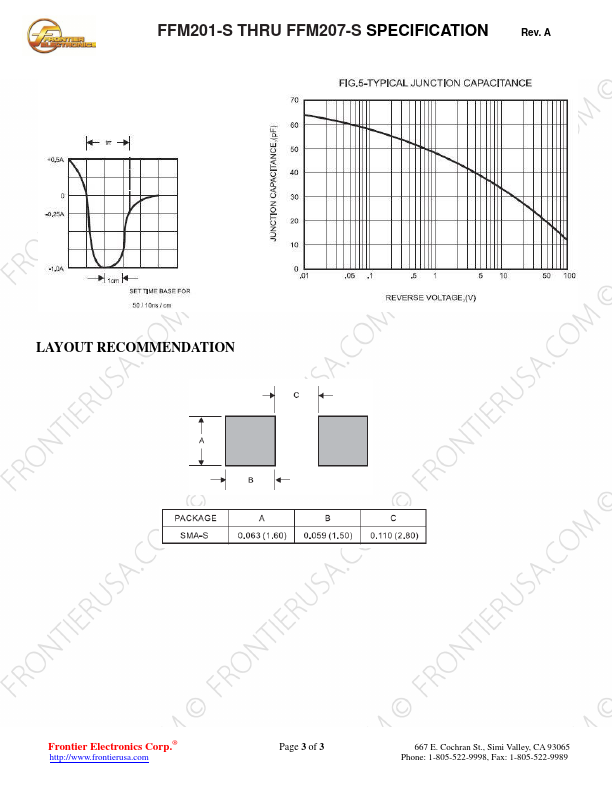

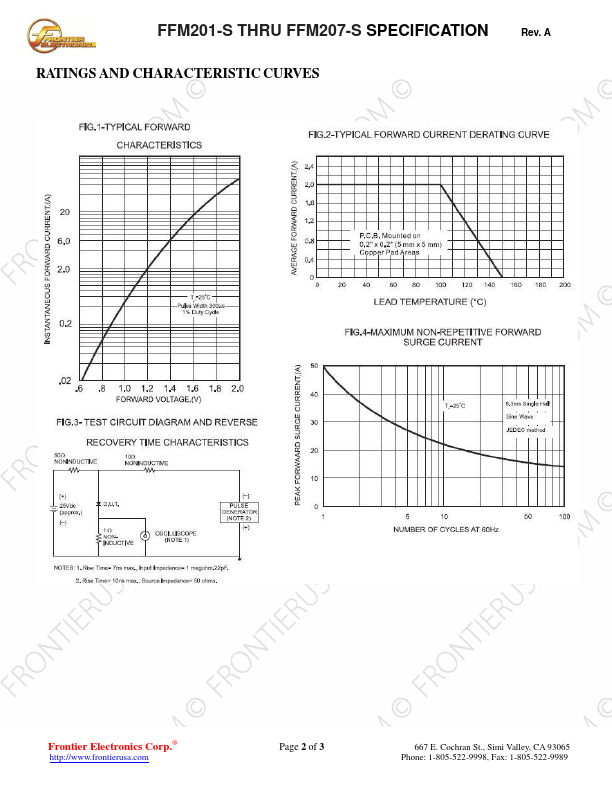

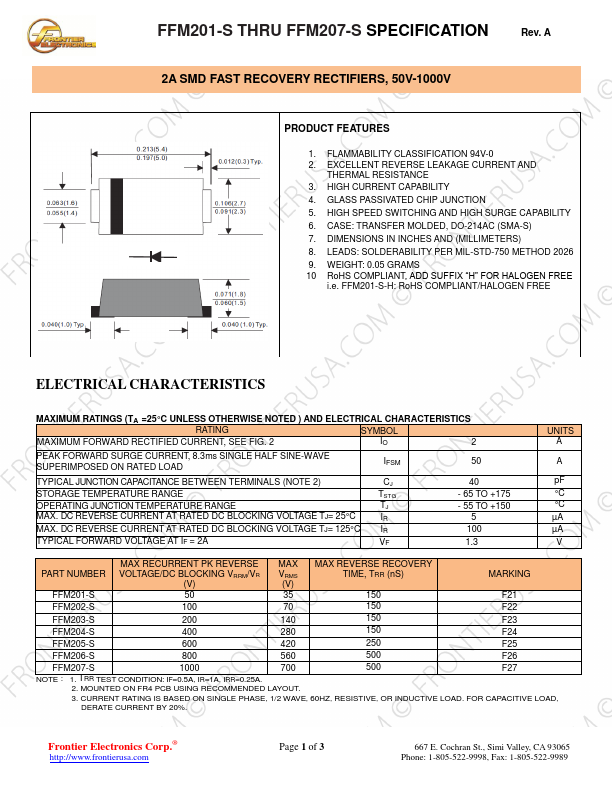

📥 Download Datasheet

FFM204-S Datasheet Preview — This datasheet PDF includes multiple part numbers: FFM204-S, FFM201-S. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FFM204-S, FFM201-S
Manufacturer: Frontier Electronics
File Size: 468.36 KB
Datasheet: FFM201-S-FrontierElectronics.pdf
Description: 2A SMD FAST RECOVERY RECTIFIERS
Note: This datasheet PDF includes multiple part numbers: FFM204-S, FFM201-S.
Please refer to the document for exact specifications by model.

Features

* 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXCELLENT REVERSE LEAKAGE CURRENT AND THERMAL RESISTANCE 3. HIGH CURRENT CAPABILITY 4. GLASS PASSIVATED CHIP JUNCTION 5. HIGH SPEED SWITCHING AND HIGH SURGE CAPABILITY 6. CASE: TRANSFER MOLDED, DO-214AC (SMA-S) 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEAD
