FFM202-S - 2A SMD FAST RECOVERY RECTIFIERS

This page provides the datasheet information for the FFM202-S, a member of the FFM201-S 2A SMD FAST RECOVERY RECTIFIERS family.

Datasheet Summary

Features

  • 1.

📥 Download Datasheet

Datasheet preview – FFM202-S

Datasheet Details

Part number FFM202-S
Manufacturer Frontier Electronics
File Size 468.36 KB
Description 2A SMD FAST RECOVERY RECTIFIERS
Datasheet download datasheet FFM202-S Datasheet
Additional preview pages of the FFM202-S datasheet.

📁 Similar Datasheet

  • FFM202-SF - Chip Fast Recovery Rectifiers (Formosa MS)
  • FFM202-BF - SMD Fast Recovery Rectifiers (Formosa MS)
  • FFM202 - Silicon Rectifier (Formosa MS)
  • FFM202 - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • FFM202 - FAST RECOVERY SILICON RECTIFIER (Rectron)
  • FFM202 - 2.0A SUFRACE MOUNT FAST RECOVERY RECTIFIERS (WILLAS)
  • FFM202A - FAST RECOVERY SILICON RECTIFIER (Rectron)
  • FFM202G - 2.0A Fast Recovery Rectifiers (American First Semiconductor)
  • FFM201 - Silicon Rectifier (Formosa MS)
  • FFM201 - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
Other Datasheets by Frontier Electronics
  • FFM201-S - 2A SMD FAST RECOVERY RECTIFIERS
  • FFM203-S - 2A SMD FAST RECOVERY RECTIFIERS
  • FFM204-S - 2A SMD FAST RECOVERY RECTIFIERS
  • FFM205-S - 2A SMD FAST RECOVERY RECTIFIERS
  • FFM206-S - 2A SMD FAST RECOVERY RECTIFIERS
  • FFM207-S - 2A SMD FAST RECOVERY RECTIFIERS
  • FFM101-S - 1A SMD FAST RECOVERY RECTIFIERS
  • FFM102-S - 1A SMD FAST RECOVERY RECTIFIERS

Full PDF Text Transcription

Click to expand full text

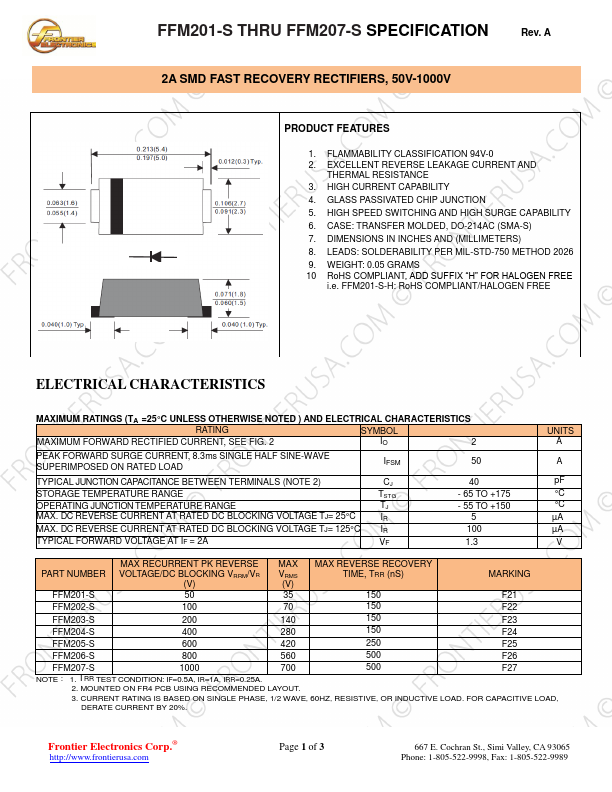

FFM201-S THRU FFM207-S SPECIFICATION Rev. A 2A SMD FAST RECOVERY RECTIFIERS, 50V-1000V PRODUCT FEATURES 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXCELLENT REVERSE LEAKAGE CURRENT AND THERMAL RESISTANCE 3. HIGH CURRENT CAPABILITY 4. GLASS PASSIVATED CHIP JUNCTION 5. HIGH SPEED SWITCHING AND HIGH SURGE CAPABILITY 6. CASE: TRANSFER MOLDED, DO-214AC (SMA-S) 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEADS: SOLDERABILITY PER MIL-STD-750 METHOD 2026 9. WEIGHT: 0.05 GRAMS 10 RoHS COMPLIANT, ADD SUFFIX “H” FOR HALOGEN FREE i.e. FFM201-S-H: RoHS COMPLIANT/HALOGEN FREE ELECTRICAL CHARACTERISTICS MAXIMUM RATINGS (TA =25°C UNLESS OTHERWISE NOTED ) AND ELECTRICAL CHARACTERISTICS RATING MAXIMUM FORWARD RECTIFIED CURRENT, SEE FIG. 2 PEAK FORWARD SURGE CURRENT, 8.
