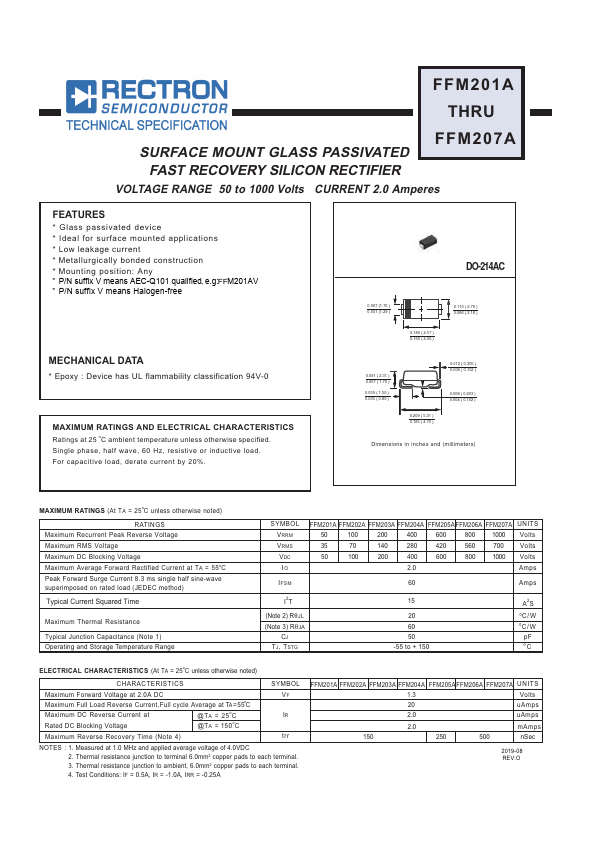

FFM202A, FFM201A FAST RECOVERY SILICON RECTIFIER

Rectron

Description

FFM201A THRU FFM207A SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes .

📥 Download Datasheet

FFM202A Datasheet Preview — This datasheet PDF includes multiple part numbers: FFM202A, FFM201A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: FFM202A, FFM201A
Manufacturer: Rectron
File Size: 244.35 KB
Datasheet: FFM201A-Rectron.pdf
Description: FAST RECOVERY SILICON RECTIFIER
Note: This datasheet PDF includes multiple part numbers: FFM202A, FFM201A.
Please refer to the document for exact specifications by model.

Features

* Glass passivated device

Applications

* Low leakage current
* Metallurgically bonded construction
* Mounting position: Any
* P/N suffix V means AEC-Q101 qualified, e. g:FFM201AV
* P/N suffix V means Halogen-free MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0 MAXIMUM RATINGS AND ELECTRICA
