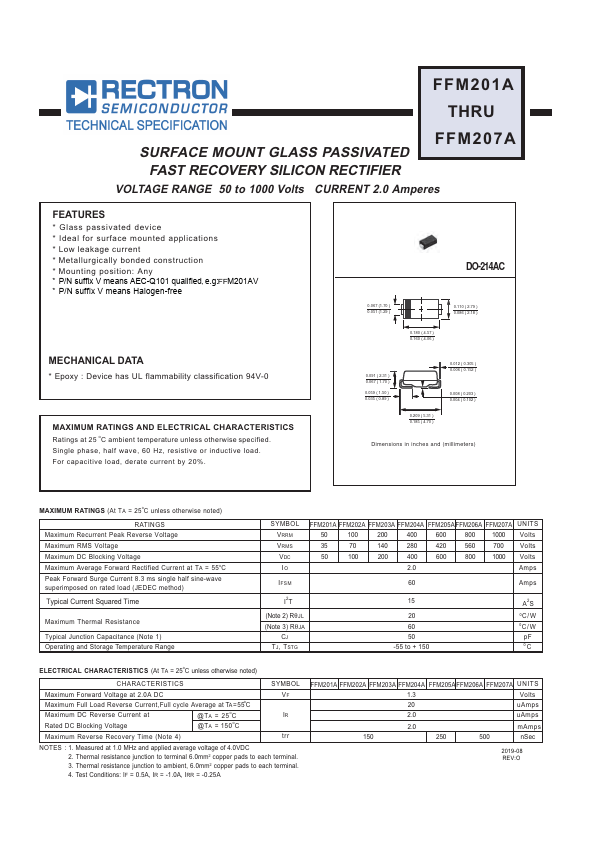

FFM201A
THRU
FFM207A
SURFACE MOUNT GLASS PASSIVATED FAST RECOVERY SILICON RECTIFIER
VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Amperes
FEATURES
* Glass passivated device * Ideal for surface mounted applications * Low leakage current * Metallurgically bonded construction * Mounting position: Any * P/N suffix V means AEC-Q101 qualified, e.g:FFM201AV * P/N suffix V means Halogen-free
MECHANICAL DATA
* Epoxy : Device has UL flammability classification 94V-0
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Ratings at 25 oC ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
DO-214AC
0.067 (1.70 ) 0.051 (1.29 )
0.180 ( 4.57 ) 0.160 ( 4.06 )
0.110 ( 2.79 ) 0.086 ( 2.18 )
0.091 ( 2.31 ) 0.
