MBR20200FCT, MBR2040CT 20A SCHOTTKY BARRIER RECTIFIERS

MBR20200FCT Description

MBR2040(F)CT THRU MBR20200(F)CT SPECIFICATION Rev.A 20A SCHOTTKY BARRIER RECTIFIERS Fig 1.TO-220AB FOR MBR20xxxCT PRODUCT .

MBR20200FCT Features

* 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXTREMELY LOW VF 3. LOW STORED CHARGE 4. MAJORITY CARRIER CONDUCTION 5. LOW POWER LOSS/HIGH EFFICIENCY 6. CASE: TRANSFER MOLDED TO-220AB FOR MBR20xxxCT ITO-220AB FOR MBR20xxxFCT 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEADS: SOLDERABILITY PER MIL-STD-202

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR20200FCT, MBR2040CT. Please refer to the document for exact specifications by model.

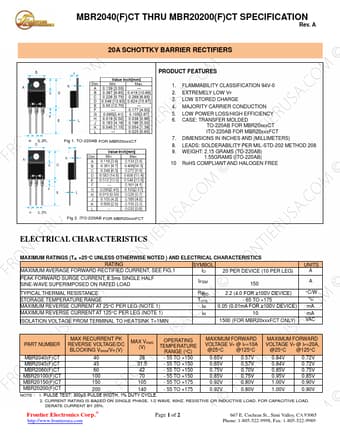

datasheet Preview Page 2

Datasheet Details

Part number
MBR20200FCT, MBR2040CT
Manufacturer
Frontier Electronics
File Size
507.89 KB
Datasheet
MBR2040CT-FrontierElectronics.pdf
Description
20A SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: MBR20200FCT, MBR2040CT.
Please refer to the document for exact specifications by model.
