SR5200, SR5150 5A SCHOTTKY BARRIER RECTIFIERS

SR5200 Description

SR5150 THRU SR5200 SPECIFICATION 5A SCHOTTKY BARRIER RECTIFIERS Rev.A PRODUCT .

SR5200 Features

* 1. FLAMMABILITY CLASSIFICATION 94V-0 2. EXTREMELY LOW VF 3. LOW STORED CHARGE 4. MAJORITY CARRIER CONDUCTION 5. LOW POWER LOSS/HIGH EFFICIENCY 6. CASE: TRANSFER MOLDED, DO-201AD 7. DIMENSIONS IN INCHES AND (MILLIMETERS) 8. LEADS: SOLDERABILITY PER MIL-STD-202 METHOD 208 9. WEIGHT: 1.1 GRAMS 10 RoHS

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SR5200, SR5150. Please refer to the document for exact specifications by model.

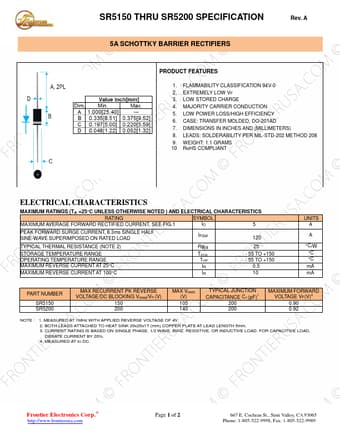

datasheet Preview Page 2

Datasheet Details

Part number
SR5200, SR5150
Manufacturer
Frontier Electronics
File Size
454.74 KB
Datasheet
SR5150-FrontierElectronics.pdf
Description
5A SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SR5200, SR5150.
Please refer to the document for exact specifications by model.
