12MBI100VX-120-50, 12MBI75VX-120-50 Datasheet - Fuji Electric

12MBI100VX-120-50, 12MBI75VX-120-50, IGBT Module

IGBT Module series for AT-NPC 3-level 12-in-1 .

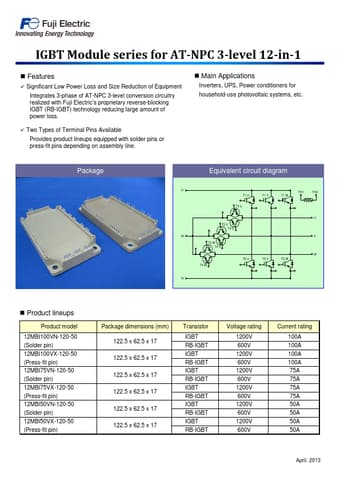

 Datasheet Preview Page 1

12MBI75VX-120-50_FujiElectric.pdf

This datasheet PDF includes multiple part numbers: 12MBI100VX-120-50, 12MBI75VX-120-50. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

12MBI100VX-120-50, 12MBI75VX-120-50

Manufacturer:

Fuji Electric

File Size:

205.07 KB

Description:

IGBT Module

Note:

This datasheet PDF includes multiple part numbers: 12MBI100VX-120-50, 12MBI75VX-120-50.
Please refer to the document for exact specifications by model.

Features

* Significant Low Power Loss and Size Reduction of Equipment Integrates 3-phase of AT-NPC 3-level conversion circuitry realized with Fuji Electric’s proprietary reverse-blocking IGBT (RB-IGBT) technology reducing large amount of power loss. Two Types of Terminal Pins Available Provides product lineups

Applications

* Inverters, UPS, Power conditioners for household-use photovoltaic systems, etc. Package P Equivalent circuit diagram TH1 T1 U T1 V T1 W TH2 T3 U U T3 V T4 U M T3 W T4 V V http://www. DataSheet4U. net/ W T2 U T4 W T2 V T2 W N Product lineups Product model 12MBI100VN-120-50 (Solder pin) 12MBI
