FA5301BP

Bipolar IC For Switching Power Supply Control

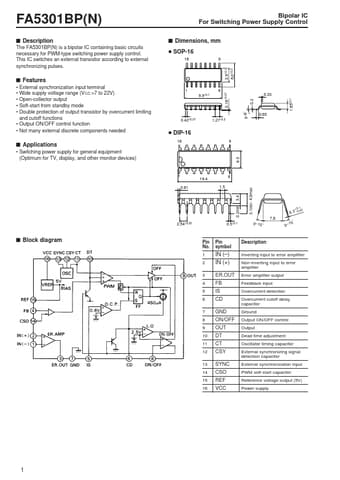

FA5301BP Datasheet (64.01 KB)

Preview of FA5301BP PDF Datasheet

Datasheet Details

Part number:

FA5301BP

Manufacturer:

Fuji Electric

File Size:

64.01 KB

Description:

Bipolar ic for switching power supply control

FA5301BP Features

* External synchronization input terminal

* Wide supply voltage range (VCC =7 to 22V)

* Open-collector output

* Soft-start from standby mode

* Double protection of output transistor by overcurrent limiting and cutoff functions

* Output ON/OFF control f

FA5301BP General Description

The FA5301BP(N) is a bipolar IC containing basic circuits necessary for PWM-type switching power supply control. This IC switches an external transistor according to external synchronizing pulses. Bipolar IC For Switching Power Supply Control s Dimensions, mm SOP-16 16 9 3.9±0.1 6.0±0.2 0.18±0.07 1.
