FA5305APS Datasheet - Fuji Electric

FA5305APS - Bipolar IC For Switching Power Supply Control

The FA5304AP(S) and FA5305AP(S) are bipolar ICs for switching power supply control and can directly drive a power MOSFET.

These ICs contain many functions in a small 8-pin package.

With these ICs, a high-performance power supply can be created compactly because not many external components are neede

FA5305APS Features

* Drive circuit for connecting a power MOS-FET (IO = ±1.5A)

* Wide operating frequency range (5 to 600kHz)

* Pulse-by-pulse overcurrent limiting function Positive voltage detection: FA5304AP(S) Negative voltage detection: FA5305AP(S)

* Overload cutoff function (Latch

FA5305APS_FujiElectric.pdf

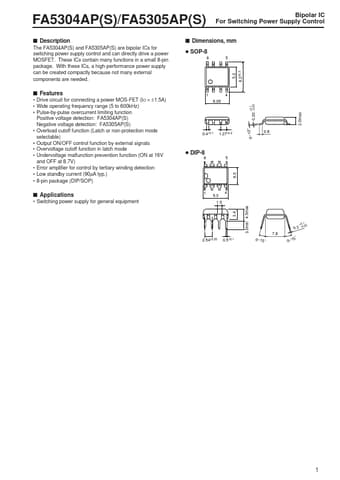

Preview of FA5305APS PDF
FA5305APS Datasheet Preview Page 2 FA5305APS Datasheet Preview Page 3

Datasheet Details

Part number:

FA5305APS

Manufacturer:

Fuji Electric

File Size:

280.12 KB

Description:

Bipolar ic for switching power supply control.
