FA5301BPN, Bipolar IC For Switching Power Supply Control

FA5301BP(N) FA5301BP(N) s .
The FA5301BP(N) is a bipolar IC containing basic circuits necessary for PWM-type switching power supply control.

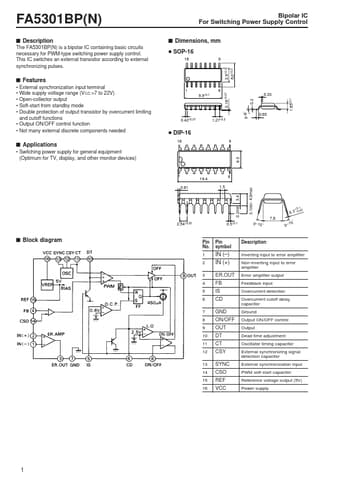

datasheet Preview Page 1 from Datasheet4u.com

FA5301BPN_FujiElectric.pdf

FA5301BPN Datasheet Preview — Preview of FA5301BPN PDF

Datasheet Details

Part number:

FA5301BPN

Manufacturer:

Fuji Electric

File Size:

64.01 KB

Description:

Bipolar IC For Switching Power Supply Control

Features

* External synchronization input terminal
* Wide supply voltage range (VCC =7 to 22V)
* Open-collector output
* Soft-start from standby mode
* Double protection of output transistor by overcurrent limiting and cutoff functions
* Output ON/OFF control f

Applications

* Switching power supply for general equipment (Optimum for TV, display, and other monitor devices) 1 0.81 19.4 1.5 8 3.1min 4.3max 0.2min 3.4 6.5 0~8˚ 0.2 7.6 2.54±0.25 0.5±0.1 0~15 ˚ 0~1 5˚ s Block diagram Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 Pin symbol Descript
