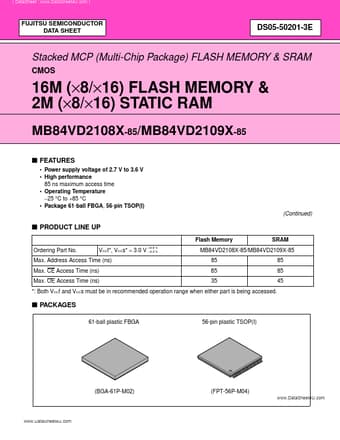

MB84VD2109x (MB84VD2108x / MB84VD2109x) 16M (x8/x16) FLASH MEMORY & 2M (x8/x16) STATIC RAM

Pin no. A0 to A16 A *1, A17 to A19 SA DQ0 to DQ15 CEf CE1s CE2s OE WE RY/BY UBs LBs CIOf CIOs RESET WP/ACC N.C. VSS VCCf VCCs Input/Output I I I I/O I I I I I O I I I I I I  Power Power Power Address Inputs (Common) Address Input (Flash) Address Input (SRAM) Data Inputs/Outputs (Common) Chip.

MB84VD2109x Features

* Power supply voltage of 2.7 V to 3.6 V

* High performance 85 ns maximum access time

* Operating Temperature

* 25 °C to +85 °C

* Package 61-ball FBGA, 56-pin TSOP(I) (Continued) s PRODUCT LINE UP Flash Memory Ordering Part No. VCCf

* , VCCs

* = 3.0 V
