MB88141 - A/D Converter

Datasheet Summary

Description

The FUJITSU MB88141 is a D/A converter with 12 built-in channels.

The 12 analog output channels have built-in OP Amps, providing large current drive capability.

Data input is compatible with I2C specifications, and is controlled by two control lines.

Features

  • Ultra-low power consumption (0.9 mW/channel Typ. ) Ultra-compact package Built-in 12-channel R-2R type 8-bit D/A converter Built-in analog output amplifier (maximum sink current 1.0 mA, maximum source current 1.0 mA) Analog output range 0 V to VCC (Continued) s.

📥 Download Datasheet

Datasheet preview – MB88141

Datasheet Details

Part number MB88141
Manufacturer Fujitsu Media Devices
File Size 265.51 KB
Description A/D Converter
Datasheet download datasheet MB88141 Datasheet
Additional preview pages of the MB88141 datasheet.

📁 Similar Datasheet

  • MB88 - Single Phase Bridge Rectifier (Micro Commercial Components)
  • MB8821x - CMOS Single-Chip 4-Bit Microcomputer with A/D Converter (Fujitsu)
  • MB88301A - NMOS 1 Channel / 13 Bit and 3 Channel / 6 Bit D/A Converter (Fujitsu)
  • MB88303 - NMOS Television Display Controller (Fujitsu)
  • MB88304 - NMOS Input / Output Expander (Fujitsu)
  • MB88305 - NMOS Input / Output Expander (Fujitsu)
  • MB88306 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88307 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88308 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88309 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
Other Datasheets by Fujitsu Media Devices

Full PDF Text Transcription

Click to expand full text

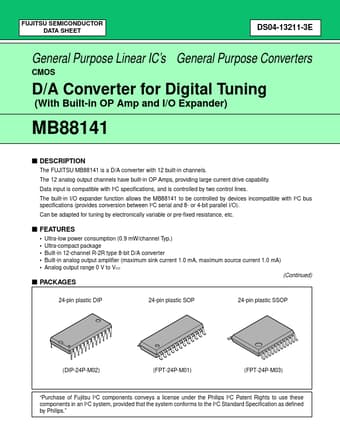

www.DataSheet4U.com FUJITSU SEMICONDUCTOR DATA SHEET DS04-13211-3E General Purpose Linear IC’s General Purpose Converters CMOS D/A Converter for Digital Tuning (With Built-in OP Amp and I/O Expander) MB88141 s DESCRIPTION The FUJITSU MB88141 is a D/A converter with 12 built-in channels. The 12 analog output channels have built-in OP Amps, providing large current drive capability. Data input is compatible with I2C specifications, and is controlled by two control lines. The built-in I/O expander function allows the MB88141 to be controlled by devices incompatible with I2C bus specifications (provides conversion between I2C serial and 8- or 4-bit parallel I/O). Can be adapted for tuning by electronically variable or pre-fixed resistance, etc.
