MB88146A - D/A Converter

Datasheet Summary

Description

The MB88146A is an 8-bit D/A converter with twelve built-in channels.

The 12 analog outputs each have a builtin OP amplifier with large current drive-capability.

The data input/output format is CS (chip select) with serial bus connection available.

Features

  • Ultra low power consumption (1.2 mW/chl: typical) Ultra compact package Built-in 12-channel R-2R type 8-bit D/A converter Built-in 12-bit I/O expander (8 bits also function as analog output) Built-in analog output amplifier (sink current 1.0 mA maximum, source current 1.0 mA maximum) Built-in power-on detection circuit (initialized at detection of VccD power-on) MCU interface c.

📥 Download Datasheet

Datasheet preview – MB88146A

Datasheet Details

Part number MB88146A
Manufacturer Fujitsu Media Devices
File Size 288.16 KB
Description D/A Converter
Datasheet download datasheet MB88146A Datasheet
Additional preview pages of the MB88146A datasheet.

📁 Similar Datasheet

  • MB88 - Single Phase Bridge Rectifier (Micro Commercial Components)
  • MB8821x - CMOS Single-Chip 4-Bit Microcomputer with A/D Converter (Fujitsu)
  • MB88301A - NMOS 1 Channel / 13 Bit and 3 Channel / 6 Bit D/A Converter (Fujitsu)
  • MB88303 - NMOS Television Display Controller (Fujitsu)
  • MB88304 - NMOS Input / Output Expander (Fujitsu)
  • MB88305 - NMOS Input / Output Expander (Fujitsu)
  • MB88306 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88307 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88308 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88309 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
Other Datasheets by Fujitsu Media Devices

Full PDF Text Transcription

Click to expand full text

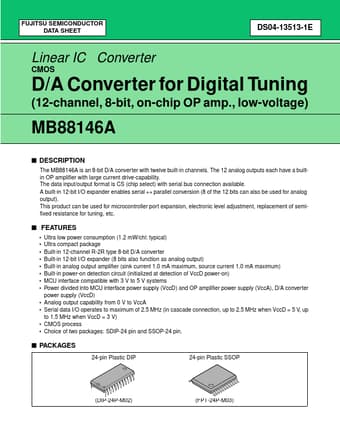

www.DataSheet4U.com FUJITSU SEMICONDUCTOR DATA SHEET DS04-13513-1E Linear IC Converter CMOS D/A Converter for Digital Tuning (12-channel, 8-bit, on-chip OP amp., low-voltage) MB88146A s DESCRIPTION The MB88146A is an 8-bit D/A converter with twelve built-in channels. The 12 analog outputs each have a builtin OP amplifier with large current drive-capability. The data input/output format is CS (chip select) with serial bus connection available. A built-in 12-bit I/O expander enables serial ↔ parallel conversion (8 of the 12 bits can also be used for analog output). This product can be used for microcontroller port expansion, electronic level adjustment, replacement of semifixed resistance for tuning, etc. s FEATURES • • • • • • • • • • • • Ultra low power consumption (1.
