MB88111 - A/D Converter

Datasheet Summary

Description

The MB88111 is an analog-to-digital converter that converts its analog input to a 10-bit digital value and outputs it as serial data.

The MB88111 employs a successive approximation method for A/D conversion.

Features

  • 24-channel analog input RC-type successive approximation system with a sample-and-hole circuit 10-bit resolution Conversion speed within 50 µs (at a system clock rate of 1 MHz) Digitally converted data output from the MSB Digitally converted data output as 16-bit serial data Clock-synchronous serial transfer system Internal extended serial interface Capable.

📥 Download Datasheet

Datasheet preview – MB88111

Datasheet Details

Part number MB88111
Manufacturer Fujitsu Media Devices
File Size 194.53 KB
Description A/D Converter
Datasheet download datasheet MB88111 Datasheet
Additional preview pages of the MB88111 datasheet.

📁 Similar Datasheet

  • MB88 - Single Phase Bridge Rectifier (Micro Commercial Components)
  • MB8821x - CMOS Single-Chip 4-Bit Microcomputer with A/D Converter (Fujitsu)
  • MB88301A - NMOS 1 Channel / 13 Bit and 3 Channel / 6 Bit D/A Converter (Fujitsu)
  • MB88303 - NMOS Television Display Controller (Fujitsu)
  • MB88304 - NMOS Input / Output Expander (Fujitsu)
  • MB88305 - NMOS Input / Output Expander (Fujitsu)
  • MB88306 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88307 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88308 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88309 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
Other Datasheets by Fujitsu Media Devices

Full PDF Text Transcription

Click to expand full text

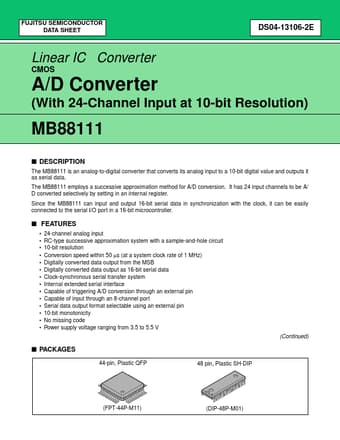

www.DataSheet4U.com FUJITSU SEMICONDUCTOR DATA SHEET DS04-13106-2E Linear IC Converter CMOS A/D Converter (With 24-Channel Input at 10-bit Resolution) MB88111 s DESCRIPTION The MB88111 is an analog-to-digital converter that converts its analog input to a 10-bit digital value and outputs it as serial data. The MB88111 employs a successive approximation method for A/D conversion. It has 24 input channels to be A/ D converted selectively by setting in an internal register. Since the MB88111 can input and output 16-bit serial data in synchronization with the clock, it can be easily connected to the serial I/O port in a 16-bit microcontroller.
