MB88151 - Spread Spectrum Clock Generator

Datasheet Summary

Description

MB88151 is a clock generator for EMI (Electro Magnetic Interference) reduction.

The peak of unnecessary radiation noise (EMI) can be attenuated by making the oscillation frequency slightly modulate periodically with the internal modulator.

Features

S.
Input frequency : 16.6 MHz to 33.4 MHz Multiplication rate : 1/2, 1, 2, 4 Output frequency : 8.3 MHz to 16.7 MHz, 16.6 MHz to 33.4 MHz, 33.3 MHz to 66.7 MHz, 66.6 MHz to 133.4 MHz Modulation rate : ± 0.5%, ± 1.5% (Center spread),.
1.0%,.
3.0% (Down spread) Equipped with oscillation circuit : Range of oscillation 16.6 MHz to 33.4 MHz Modulation clock output Duty : 40% to 60% (Continued).

Datasheet Details

Part number	MB88151
Manufacturer	Fujitsu Media Devices
File Size	186.64 KB
Description	Spread Spectrum Clock Generator
Datasheet	MB88151 Datasheet
Additional preview pages of the MB88151 datasheet.

📁 Similar Datasheet

MB88 - Single Phase Bridge Rectifier (Micro Commercial Components)

MB8821x - CMOS Single-Chip 4-Bit Microcomputer with A/D Converter (Fujitsu)

MB88301A - NMOS 1 Channel / 13 Bit and 3 Channel / 6 Bit D/A Converter (Fujitsu)

MB88303 - NMOS Television Display Controller (Fujitsu)

MB88304 - NMOS Input / Output Expander (Fujitsu)

MB88305 - NMOS Input / Output Expander (Fujitsu)

MB88306 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)

MB88307 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)

MB88308 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)

MB88309 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)

Full PDF Text Transcription

Click to expand full text

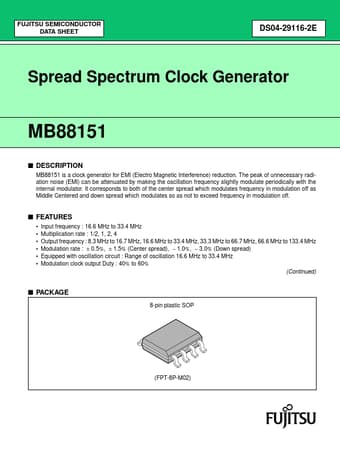

www.DataSheet4U.com FUJITSU SEMICONDUCTOR DATA SHEET DS04-29116-2E Spread Spectrum Clock Generator MB88151 ■ DESCRIPTION MB88151 is a clock generator for EMI (Electro Magnetic Interference) reduction. The peak of unnecessary radiation noise (EMI) can be attenuated by making the oscillation frequency slightly modulate periodically with the internal modulator. It corresponds to both of the center spread which modulates frequency in modulation off as Middle Centered and down spread which modulates so as not to exceed frequency in modulation off. ■ FEATURES • • • • • • Input frequency : 16.6 MHz to 33.4 MHz Multiplication rate : 1/2, 1, 2, 4 Output frequency : 8.3 MHz to 16.7 MHz, 16.6 MHz to 33.4 MHz, 33.3 MHz to 66.7 MHz, 66.6 MHz to 133.4 MHz Modulation rate : ± 0.5%, ± 1.
