MB88153 - Spread Spectrum Clock Generator

Datasheet Summary

Description

MB88153 is a clock generator for EMI (Electro Magnetic Interference) reduction.

The peak of unnecessary (EMI) can be attenuated by making the oscillation frequency slightly modulate periodically with the internal modulator.

Features

  • D = 12.5 kHz (Typ).
  • 1.0% modulation rate, Example of down spread CKOUT output frequency Frequency at modulation OFF Time.
  • 0.5 %.
  • 1.0 % fMOD.

📥 Download Datasheet

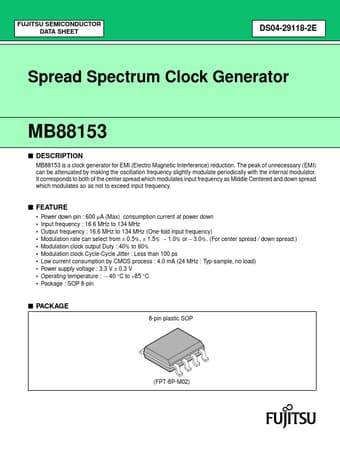

Datasheet preview – MB88153

Datasheet Details

Part number MB88153
Manufacturer Fujitsu Media Devices
File Size 178.75 KB
Description Spread Spectrum Clock Generator
Datasheet download datasheet MB88153 Datasheet
Additional preview pages of the MB88153 datasheet.

📁 Similar Datasheet

  • MB88 - Single Phase Bridge Rectifier (Micro Commercial Components)
  • MB8821x - CMOS Single-Chip 4-Bit Microcomputer with A/D Converter (Fujitsu)
  • MB88301A - NMOS 1 Channel / 13 Bit and 3 Channel / 6 Bit D/A Converter (Fujitsu)
  • MB88303 - NMOS Television Display Controller (Fujitsu)
  • MB88304 - NMOS Input / Output Expander (Fujitsu)
  • MB88305 - NMOS Input / Output Expander (Fujitsu)
  • MB88306 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88307 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88308 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
  • MB88309 - (MB88306 - MB88309) CMOS Output Expander (Fujitsu)
Other Datasheets by Fujitsu Media Devices

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com FUJITSU SEMICONDUCTOR DATA SHEET DS04-29118-2E Spread Spectrum Clock Generator MB88153 ■ DESCRIPTION MB88153 is a clock generator for EMI (Electro Magnetic Interference) reduction. The peak of unnecessary (EMI) can be attenuated by making the oscillation frequency slightly modulate periodically with the internal modulator. It corresponds to both of the center spread which modulates input frequency as Middle Centered and down spread which modulates so as not to exceed input frequency. ■ FEATURE • • • • • • • • • • Power down pin : 600 µA (Max) consumption current at power down Input frequency : 16.6 MHz to 134 MHz Output frequency : 16.6 MHz to 134 MHz (One-fold input frequency) Modulation rate can select from ± 0.5%, ± 1.5% − 1.0% or − 3.0%.
