BA24WK, BA24 MINIATURE RELAY

Fujitsu

BA24WK Description

MINIATURE RELAY 2 POLES *1 to 2 A (FOR SIGNAL SWITCHING) BA SERIES s .

BA24WK Features

* q q q q q q q q q Slim type relay for high density mounting CSA recognized Conforms to IEC60950, Bellcore specification and FCC Part 68
* Clearance more than 2.0 mm between coil and contacts
* Creepage more than 2.5 mm between coil and contacts
* Dielectric strength 2,000 VAC

📥 Download Datasheet

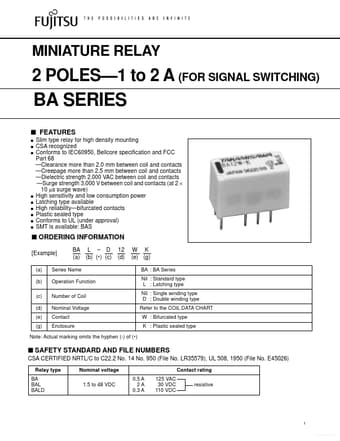

BA24WK Datasheet Preview — This datasheet PDF includes multiple part numbers: BA24WK, BA24. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: BA24WK, BA24
Manufacturer: Fujitsu
File Size: 142.23 KB
Datasheet: BA24-WK.pdf
Description: MINIATURE RELAY
Note: This datasheet PDF includes multiple part numbers: BA24WK, BA24.
Please refer to the document for exact specifications by model.
