MB39A104 - 2-Channel DC/DC Converter IC

Product Overview

Fujitsu

Datasheet Details

Part number	MB39A104
Manufacturer	Fujitsu
File Size	388.00 KB
Description	2-Channel DC/DC Converter IC
Datasheet	MB39A104 Datasheet

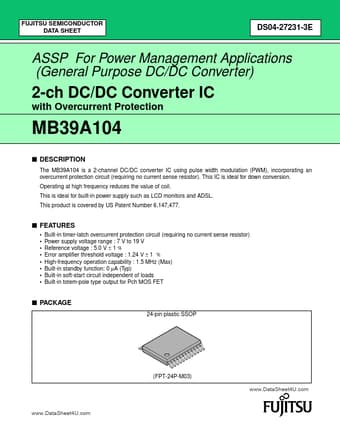

Additional preview pages of the MB39A104 datasheet.

Product details

Description

The MB39A104 is a 2-channel DC/DC converter IC using pulse width modulation (PWM), incorporating an overcurrent protection circuit (requiring no current sense resistor).

Features

Built-in timer-latch overcurrent protection circuit (requiring no current sense resistor) Power supply voltage range : 7 V to 19 V Reference voltage : 5.0 V ± 1 % Error amplifier threshold voltage : 1.24 V ± 1 % High-frequency operation capability : 1.5 MHz (Max) Built-in standby function: 0 µA (Typ) Built-in soft-start circuit independent of loads Built-in totem-pole type output for Pch MOS FET s.
