M202MD15FJ

VACUUM FLUORESCENT DISPLAY MODULE

M202MD15FJ General Description

Futaba Vacuum Fluorescent Display Module M202MD15FJ, with Futaba VFD 202-MD-15GNK display, produces 20 digits×2rows write 5×8 dot matrix. Consisting of a VFD, one chip controller, DC-DC/AC converter, the module can be operated by a parallel interface or a synchronous serial interface, and only 5 vol.

M202MD15FJ Datasheet (264.42 KB)

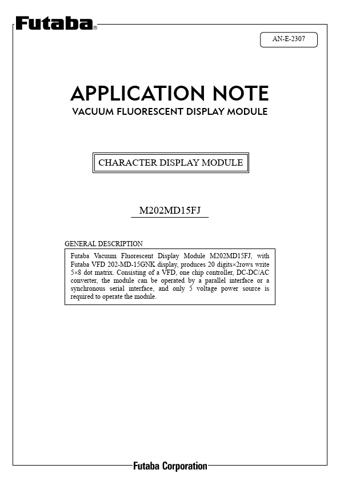

Preview of M202MD15FJ PDF

Datasheet Details

Part number:

M202MD15FJ

Manufacturer:

Futaba

File Size:

264.42 KB

Description:

Vacuum fluorescent display module.
