M204D08AA - VACUUM FLUORESCENT DISPLAY MODULE

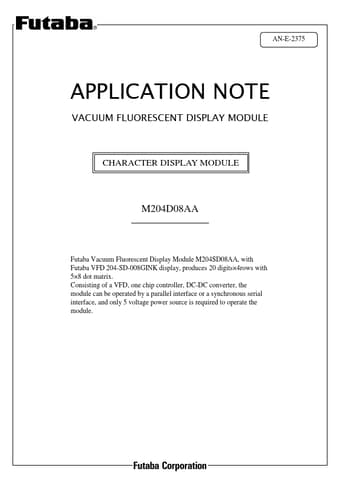

AN-E-2375 APPLICATION NOTE VACUUM FLUORESCENT DISPLAY MODULE CHARACTER DISPLAY MODULE M204D08AA Futaba Vacuum Fluorescent Display Module M204SD08AA, with Futaba VFD 204-SD-008GINK display, produces 20 digits×4rows with 5×8 dot matrix.

Consisting of a VFD, one chip controller, DC-DC converter, the module can be operated by a parallel interface or a synchronous serial interface, and only 5 voltage power source is required to operate the module.
