M2045S - (M2035S / M2045S) High Voltage Trench MOS Barrier Schottky Rectifier

M2045S Description

M2035S & M2045S Vishay General Semiconductor High-Voltage Trench MOS Barrier Schottky Rectifier .
only.

M2045S Features

* Guardring for overvoltage protection
* Lower power losses, high efficiency
* Low forward voltage drop
* High forward surge capability
* High frequency operation 3 2 1 1 2 CASE TO-220AB
* Solder Dip 260 °C, 40 seconds
* Component in accordan

M2045S Applications

* For use in low voltage, high frequency rectifier of switching mode power supplies, free-wheeling diodes, dc-to-dc converters or polarity protection applications. MECHANICAL DATA Case: TO-220AB Epoxy meets UL 94V-0 flammability rating Terminals: Matte tin plated leads, solderable per J-STD-002B and J

📥 Download Datasheet

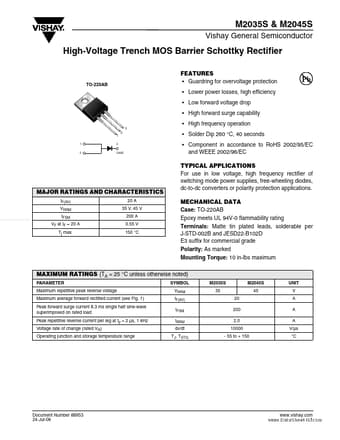

Preview of M2045S PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
M2045S
Manufacturer
Vishay ↗ Intertechnology
File Size
151.12 KB
Datasheet
M2045S_VishayIntertechnology.pdf
Description
(M2035S / M2045S) High Voltage Trench MOS Barrier Schottky Rectifier
