GNL-3014UEC-TL-H, GNL-3014UEC-TL-S Datasheet - G-NOR

GNL-3014UEC-TL-H Ultra Brightness LED

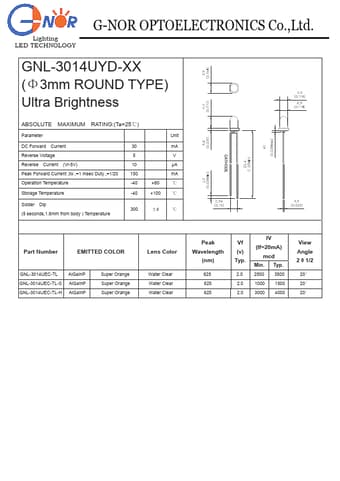

G-NOR OPTOELECTRONICS Co.,Ltd. Lighting LED TECHNOLOGY GNL-3014UYD-XX (Φ3mm ROUND TYPE) Ultra Brightness 1 ABSOLUTE MAXIMUM RATING:(Ta=25℃) Parameter DC Forward Current Reverse Voltage Reverse Current (Vr-5V) Peak Forward Current ,tw ,=1 msec Duty ,=1/20 Operation Temperature Storage Temperature 30 5 10 150 -40 -40 Solder Dip (5 seconds,1.6mm from body ) Temperature 300 +80 +100 Unit mA V µA mA ℃ ℃ ±5 ℃ Part Number EMITTED COLOR GNL-3014UEC-TL GNL-3014UEC-TL-S GNL-3014UEC-TL-H AlG.

GNL-3014UEC-TL-S-NOR.pdf

This datasheet PDF includes multiple part numbers: GNL-3014UEC-TL-H, GNL-3014UEC-TL-S. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

GNL-3014UEC-TL-H, GNL-3014UEC-TL-S

Manufacturer:

G-NOR

File Size:

252.81 KB

Description:

Ultra brightness led.

Note:

This datasheet PDF includes multiple part numbers: GNL-3014UEC-TL-H, GNL-3014UEC-TL-S.
Please refer to the document for exact specifications by model.
