GNL-3014UED Datasheet - G-NOR

GNL-3014UED Ultra Brightness LED

G-NOR ELECTRONICS CO.,LTD. GNL-3014xD ( 3mm ROUND TYPE) Ultra Brightness ABSOLUTE MAXIMUM RATING:(Ta=25 ) Parameter DC Forward Current Reverse Voltage Reverse Current (Vr-5V) Peak Forward Current ,tw ,=1 msec Duty ,=1/20 Operation Temperature Storage Temperature 30 5 10 150 -40 -40 Solder Dip (5 seconds,1.6mm from body ) Temperature 300 +80 +100 Unit mA V µA mA Part Number EMITTED COLOR GNL-3014UED GNL-3014UED-TL GNL-3014PGD GNL-3014PGD-TL AlGaInP AlGaInP InGaN InGaN Super Orange S.

GNL-3014UED Datasheet (19.99 KB)

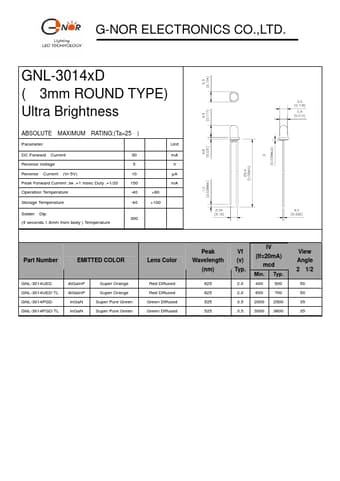

Preview of GNL-3014UED PDF

Datasheet Details

Part number:

GNL-3014UED

Manufacturer:

G-NOR

File Size:

19.99 KB

Description:

Ultra brightness led.
