CDP6805E2 Datasheet - GE

CDP6805E2 CMOS 8-Bit Microprocessor

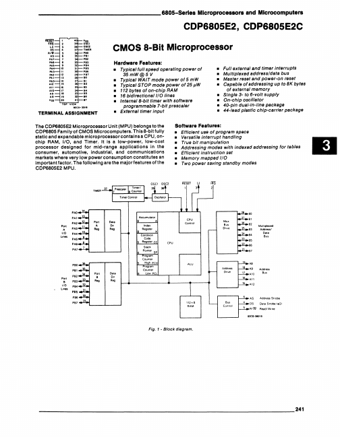

_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ 6805-Serle. Microprocessors and Microcomputers CDP6805E2, CDP6805E2C VDO OICI OSC. TIM!III '.0a0, .a. .a a. a a. .aT a, v's a. a. aa . . ae 21 aT TOP VIEW tiCS-Hut TERMINAL ASSIGNMENT CMOS 8-Bit Microprocessor Hardware Fealures: Typical full speed operating power of 35mW@5V Typical WAIT mode power of 5 mW Typical STOP mode power of 25pW 112 bytes of on-chip RAM

CDP6805E2 Features

* ofthe CDP6805E2 MPU. Software Features:

* Efficient use of program spece

* Versatile interrupt handling

* True bit manipulation

* Addressing modes with Indexed addressing for tables

* Efficient instruction set

* Memory mapped I/O

* Two power s

CDP6805E2 Datasheet (5.15 MB)

Preview of CDP6805E2 PDF

Datasheet Details

Part number:

CDP6805E2

Manufacturer:

GE

File Size:

5.15 MB

Description:

Cmos 8-bit microprocessor.
